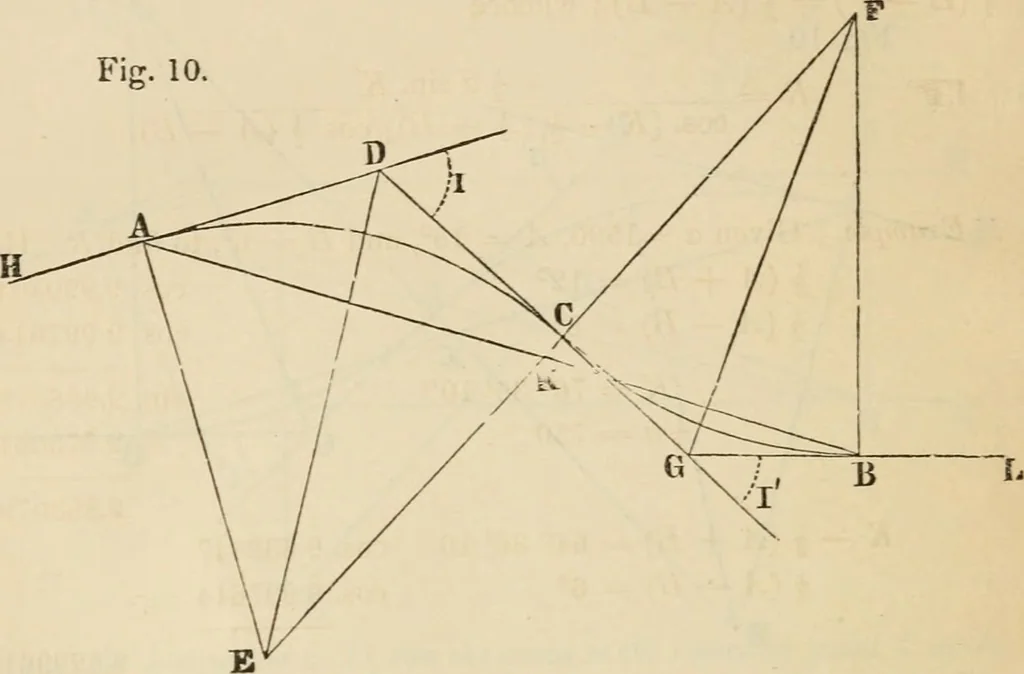

ed by measuring from D aiistance J. Z) = 72 tan |- 7, and from G a distance B G — R tan. \ I, Example. Given a = 600, 1 = 12°, and F = 8° to find R. Here a = 600 2.778151 i7=6° cos. 9.997614 f 7 = 4° cos. 9.998941 R = 3427.96 2.774706sin. 9.239670 3.535036 22 CIRCULAR CURVES 40. Problem. Given the… … Solution. Find Jirst the auxiliai-y angle A KE = B KF, ivhich inmjbe denoted by K. For this purpose the triangle A E K gives A E: E K= sin. K: sin. E A AT. Therefore E K sin. K = A E sin. E A K ~R cos. A, since EAK = 90^ — A. In like manner, the triangleBFK gives FK sin K= BF sin. FBK = R cos. B.…
