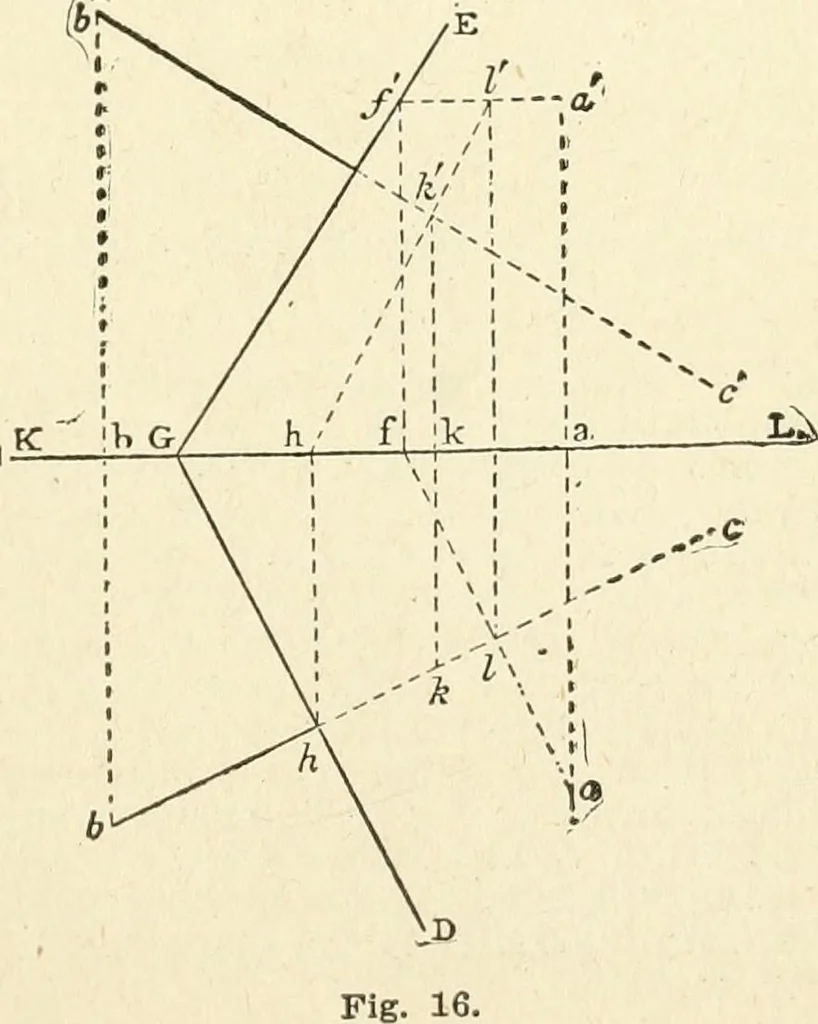

34 MODERN CARPENTRY G D perpendicular to b c. If the projections of thestraight line are required, proceed as in the previousproblem, and as shown by the dotted lines; the planewill cut the given line at k in the horizontal projec-tion, and at k in the vertical projection.* XII. A rig-ht line being…
