Fifteen mechanical problems : reasons for their existence and their solution (1915)

Sargent, Charles Elliotte · leaf 329

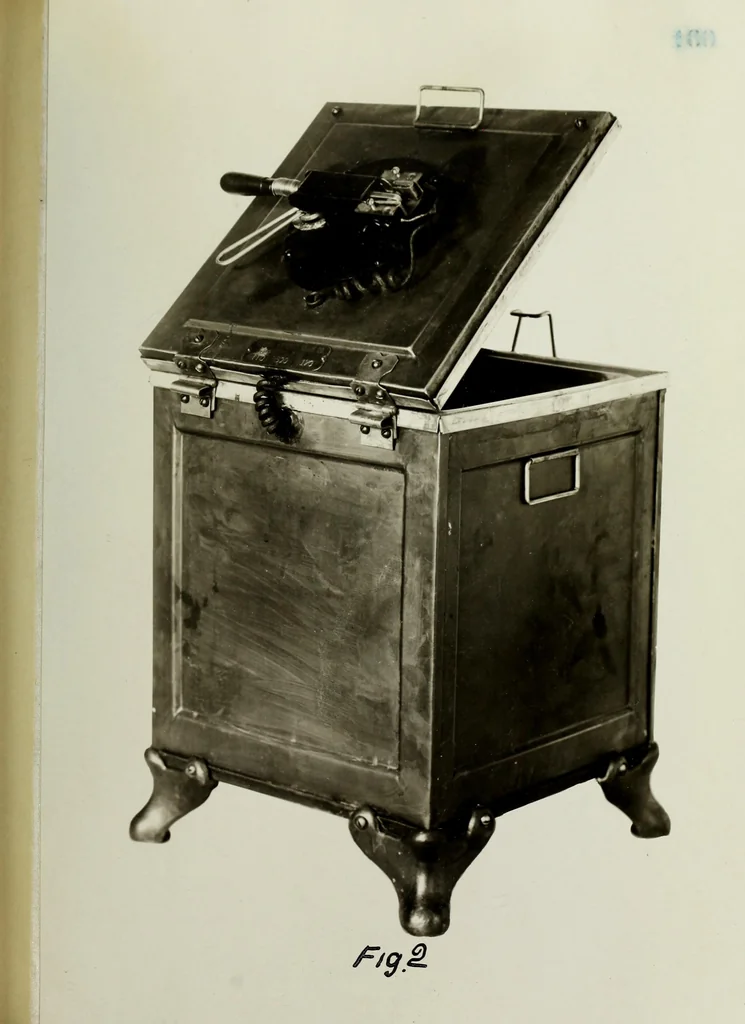

An illustration from Fifteen mechanical problems : reasons for their existence and their solution, 1915, leaf 329 — SOLUTION* Such a thermostat is shown mounted on the side of a cooker (Fig.l)and on the cover of a firoless cooker (Fig.2) and in accompanying descriptionNo.1072170. By adjusting the indicator any temperature may be obtained beforethe circuit is automatically opened. … Mil C. E. SARGENT. ELECTRIC COOKING DEVICE.APPLICATION PILED MAY 20, 1911. 1,072,170. Patented Sept. 2,1913. 2 SHEETS—SHEET 1.

Mechanical engineering · Machine design · Theses

Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
