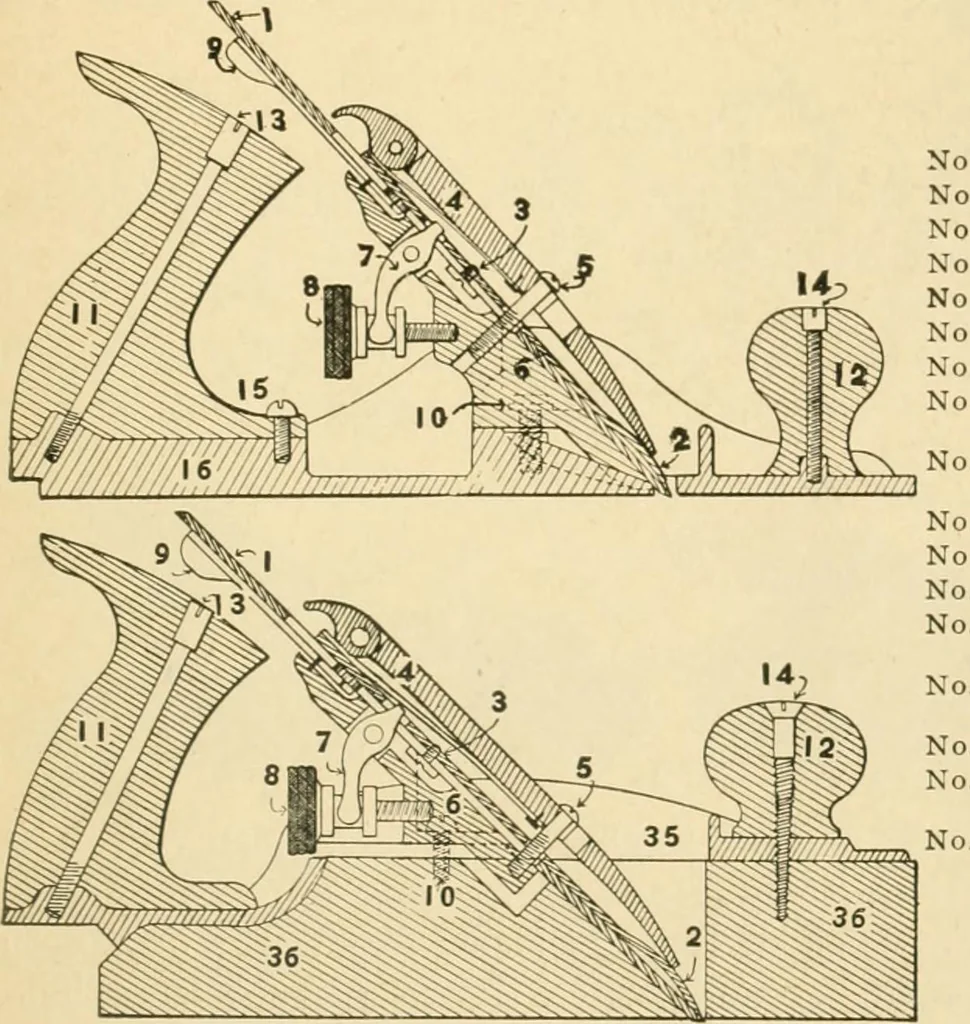

od. If you have a perfect straight edge onthe face of the iron, as shown in Figure 9, the corners of the iron \y K%0. will dig into the wood, the plane will become clogged and the sur-face thus obtained will be unsatisfactory. However, we caution younot to overdo this. 18 THE CRAFTSMANS HOME STUDY… … 1 Plane Iron. 2 Plane Iron Cap. 3 Plane Iron Screw. 4 Cap. 5 Cap Screw. 6 Frog. 7 Y Adjustment. 8 Brass AdjustingNut. 9 Lateral Adjust-ment. 10 Frog Screw. 11 Handle. 12 Knob. 13 Handle Bolt andNut. 14 Knob Bolt andNut. 15 Handle Screw. 16 Bottom (IronPlane.) 35TopCasting(WoodPlane.) In planing,…
