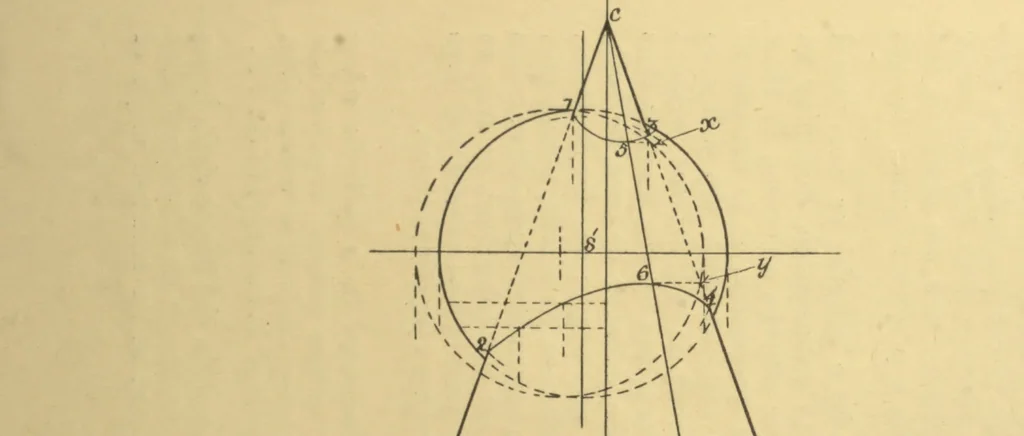

ccur. Problem 83 (Fig. 187).—A sphere is penetrated by a cylinder whoseaxis is vertical and parallel to that of the sphere; required thelines of intersection of the solids, when their axes are a givendistance apart, in a vertical plane inclined at an cmgle to the VP. Let No. 1 (Fig. 187) be a plan…
