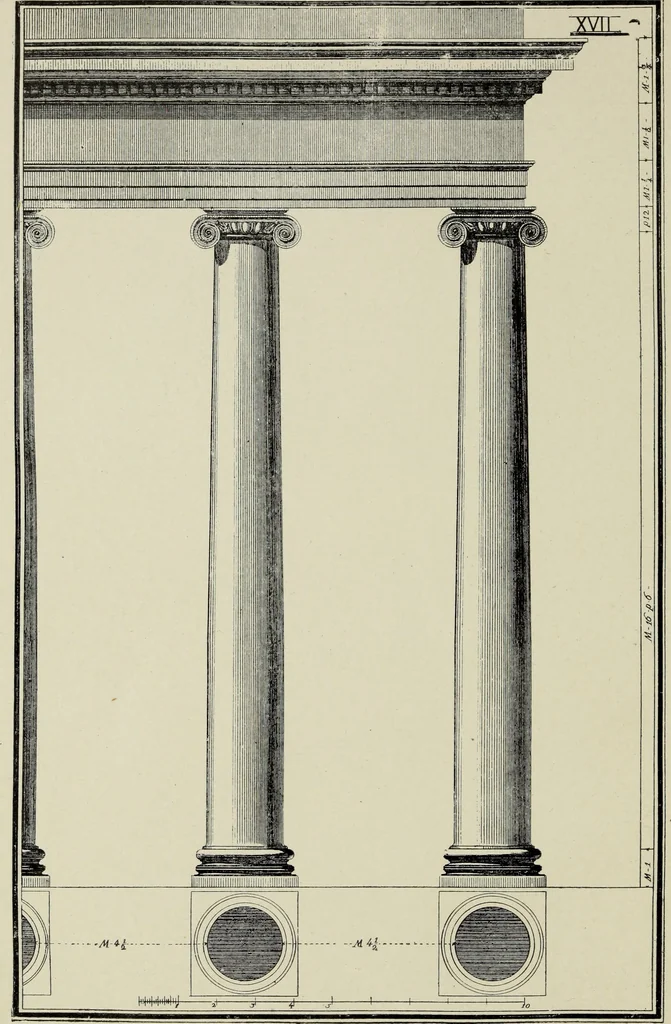

eye, and 6under the eye. Vignola gives the Tonic entablature a height of 4^ moduli,which is \ the altitude of the column, with base and capital.The ratio of altitude of the three members of the entabla-ture is 5 to 6 to 7. The architrave is 1^ moduli high, andprojects 5 parts. The frieze is 1^… … PLATE XVII. SIMPLE IONIC INTERCOLUMNIATION. In this modification of the Ionic we divide the totalheight into 5 parts^ — 4 for the column^ with base andcapital^ and 1 for the entablature. The column, with base and capital, is 18 moduli high.The base is 1 modulus high, the shaft 161, and the capitalI…
