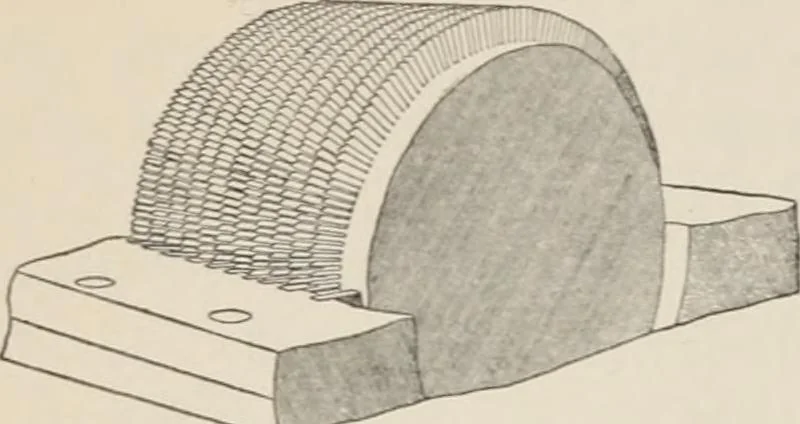

steam isused expansively. In a piston-engine the cylinder is filledto one-twelfth or one-fifteenth of its capacity with high-pressure steam, when communication with the boiler is cutoff; during the remainder of its stroke the piston is urgedsolely by the steams elasticity. In the Parsons turbine,… … Fig. io. Moving-blades and guide-vanes of theParsons steam-turbine. and velocity (Fig. io). The illustration shows the arrange-ment of moving-blades and guide-vanes, the top outercover of the case having been removed. The revolvingbarrel has keyed into its curve the moving-blades. The end of one…
