Buck, H. D. (Horace Davis) · New York, Bragdon, Lord & Nagle Company · leaf 33

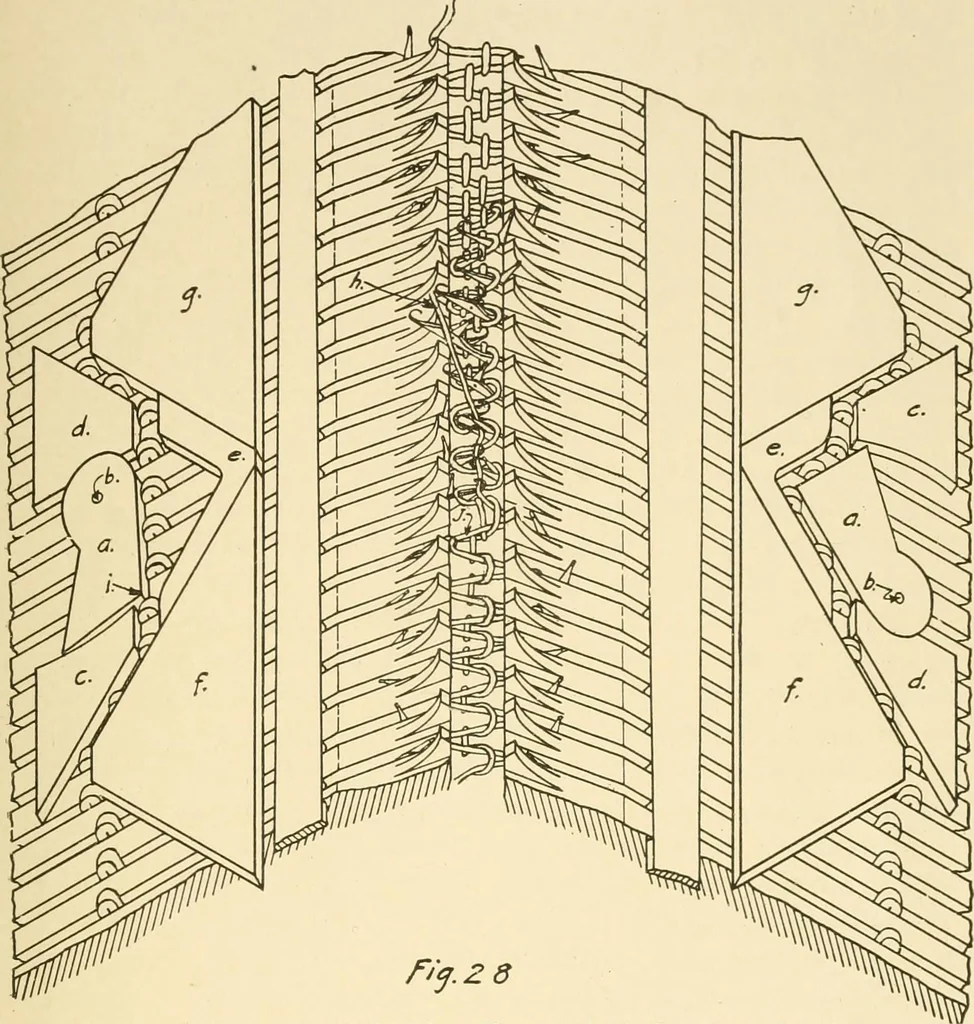

s Made The diagram at Fig. 28 shows the method used to makethe half cardigan or tuck stitch on a flat machine. The camsshown are what are known as the Lamb system and are calledthe automatic cardigan or drop locks. The word locks, asapplied to the flat knitting machine, means a full set of… … Automatic Locks for Making Half or Full Cardigan Fabrics. reason is used for illustration first. The others will be takenup at the proper place. In Fig. 28 only a part of the needle plates are shown. Theyare attached to a frame at an angle of 90° to each other and 45to the horizontal as explained…
Machine knitting · Textile fabrics
