Free-hand drawing : a manual for teachers and students (1898)
Cross, Anson K. (Anson Kent), 1862-1944 · Boston : Ginn & Company · leaf 83

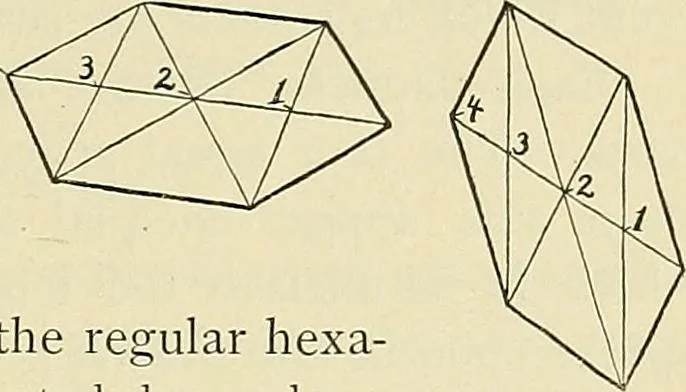

FREE-HAND PERSPECTIVE OR MODEL DRAWING. 65 Draw the long and short diagonals upon a large hexagonal tablet.Place this tablet in a horizontal orvertical position, and then trace ^upon the slate its appearance andthe lines upon it. The tracing illus-trates the following rule : Rule 27. In a correct… … Lesson XIII. — The Centre of the Ellipse does not Represent theCentre of the Circle, (/v?;- teachers only.) Cut from paper a square of three inches, after having inscribed acircle in the square. Draw the diameters of the square and thenplace the square horizontally at the middle of theback of the…
Drawing
Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
