Free-hand drawing : a manual for teachers and students (1898)
Cross, Anson K. (Anson Kent), 1862-1944 · Boston : Ginn & Company · leaf 97

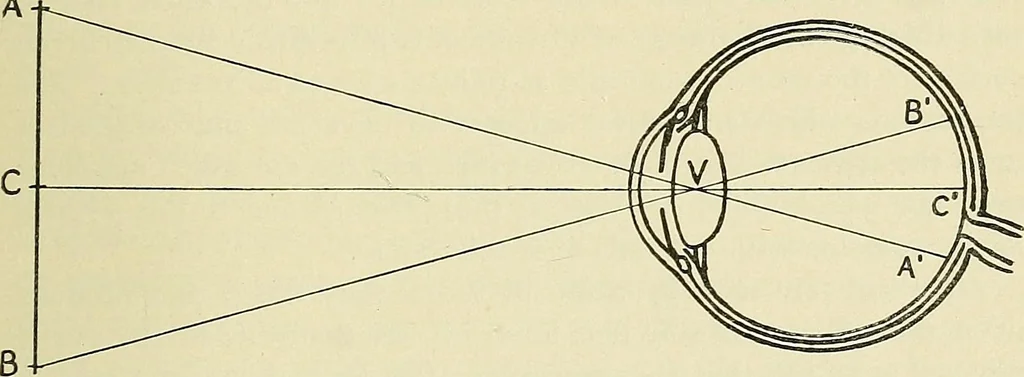

er that theymay represent the appearance of all the figures. In order to understand the difference between a scientific perspec-tive and the drawing which an artist makes of a figure or other sub-ject not architectural, we must determine first what the eye sees,and second any points of difference… … Fig. 17. A Top View. eye pass through its lens and are focussed by it upon the sensitivenerves at the back of the eye. The surface of the eye which re-ceives the light transmitted by the lens is spherical, and the rays oflight pass through the lens and strike upon the sensitive retina in adirection…
Drawing
Internet Archive · Boston Public Library · Public Domain Mark 1.0. Free to use for anything.
