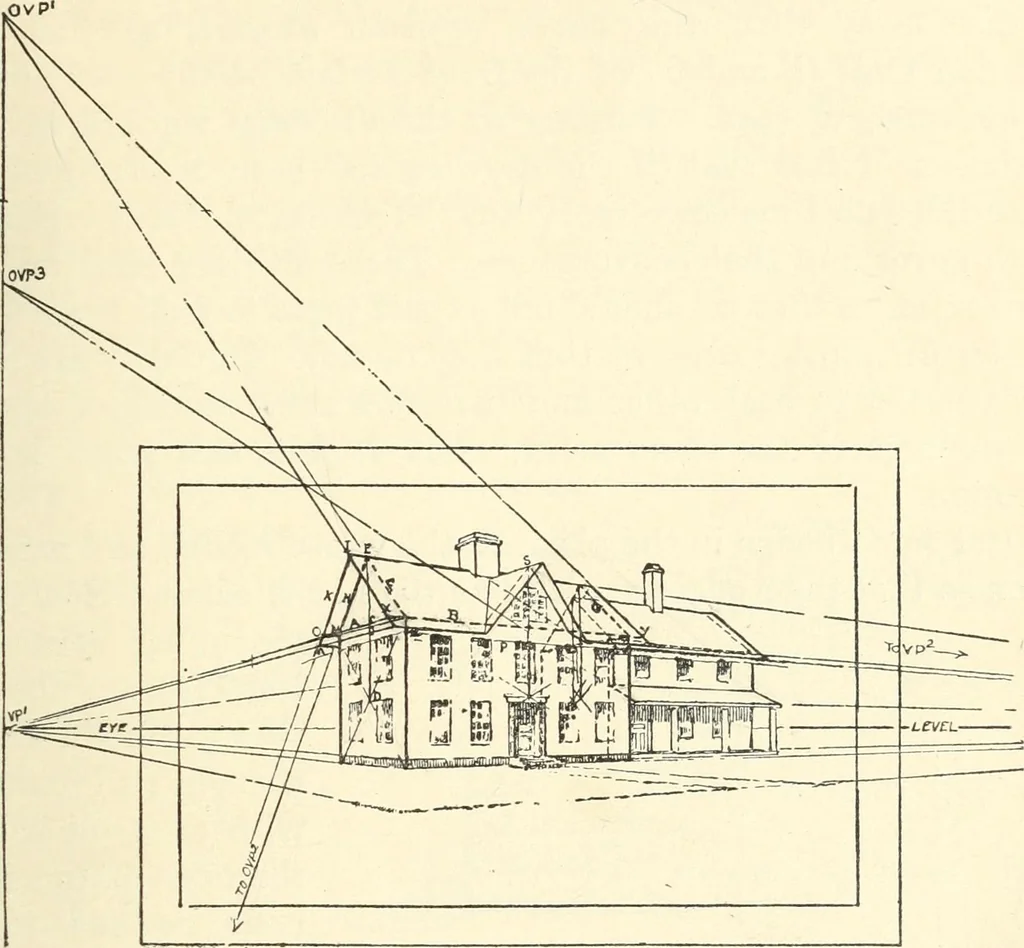

Fig. Ill THE STUDY AND DRAWING OF A HOUSE but as that makes a roof steeper than is usual, we will set itoff less in the drawing, that is, making EC (Fig. 112) but a … Fig. 112 little more than CD. (Since these distances are in the samevertical line, and so at the same distance from the picture planethey are seen and drawn in their true proportions to eachother.) The sloping sides of the gable may then be drawnto the house corners, and the ridgepole to VP2.…
