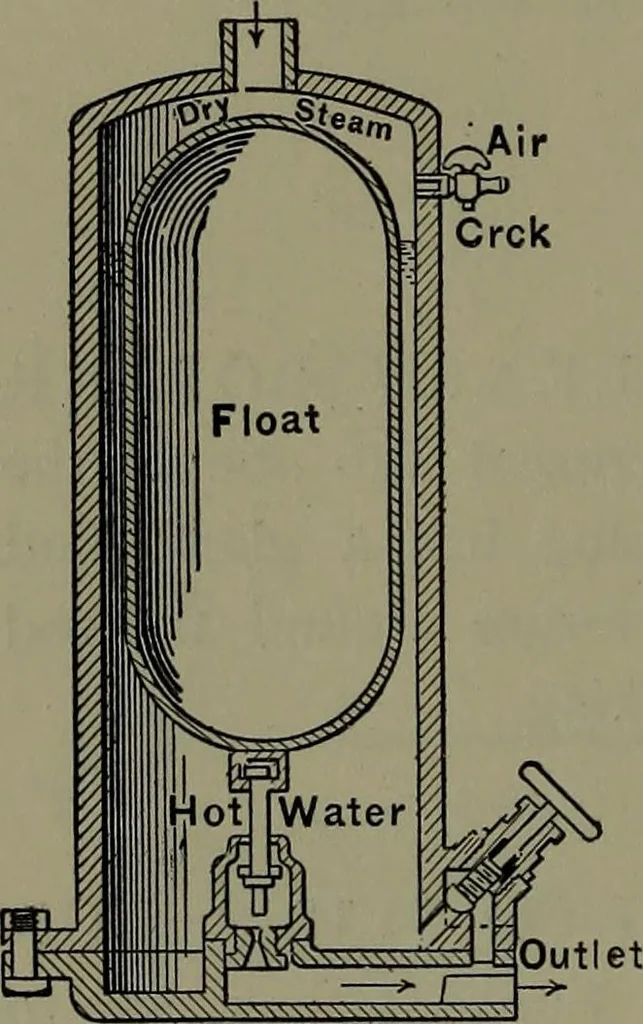

125. AUTOMATIC STEAMTRAP. Lawler type. The openfloat by its overflow and fiUing,sinks, and opens the discharge valveby its lever connection. When thefloat is emptied by the steam pres-sure, the float rises and closes thevalve. … 126. FLOAT STEAM TRAP. One of the several types of steam traps with sealedfloats, this having a direct attachment of thefloat and valve which is designed to give asmall amount of motion to the float foroperating the valve. The valve has a cage guide and its stemis loosely socketed to the float, so…
