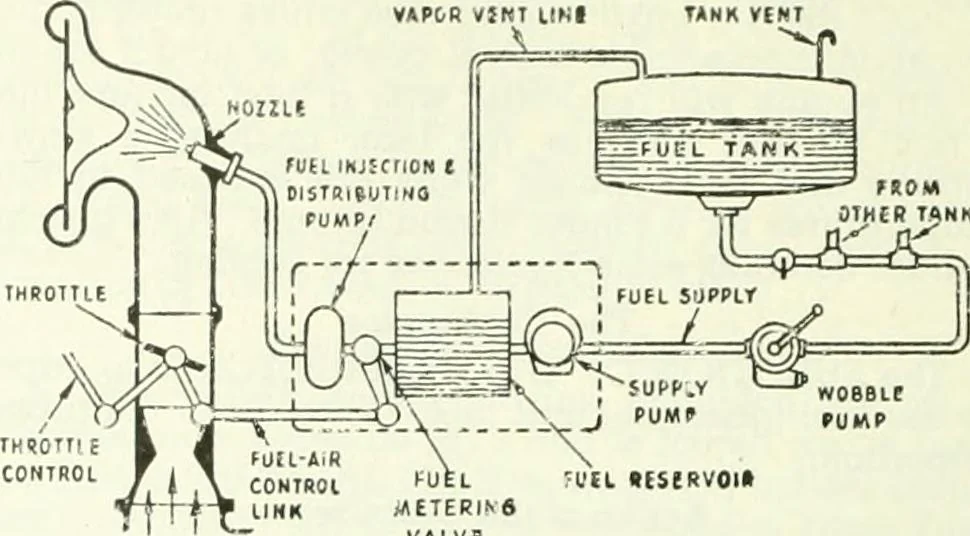

tem dispenses with the Car-buretor and hence with the hazard of carburetor icing.Other advantages of kiel injection are: (1) More uniformdistribution of fuel to all cylinders—since the hiel isseparately metered to each cylinder. (2) Better cooUng,through the elimination of lean hot mixtures to… … STHED TANK] 1 ,V COHIBOl •^EL tl lIStRVOI* «1R INTAKe Fig. /*. Schematic Diagram. Fuel Injection System. Fig. 18 is a schematic diagram of a typical FuelInjection system such as many small aircraft enginesemploy. The fuel is pumped from the FUEL TANK bythe SUPPLY PUMP to the FUEL RESERVOIR at…
