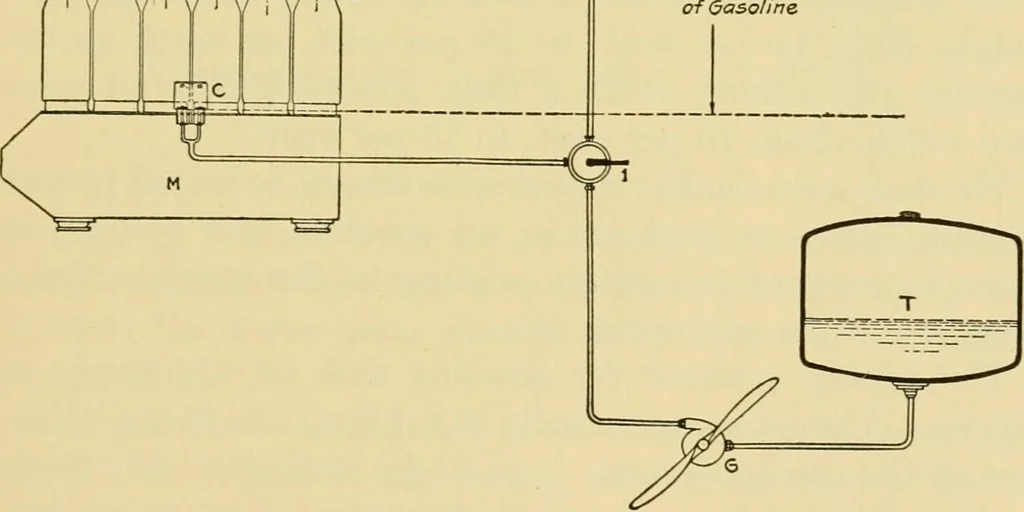

FiG. 55.—Gasoline pressure feed sj^stem. retor by gravity; the gasohne in this tank is used in casethe feed from the main tank should cease to operate. Fi- I I I I I I pr^i r^^ f^i tTi r]°i f^ ^ Heighi of Fall of Gasoline … nally, cock 1 also enables a flow between the main tank Tand the auxiliary tank t, in order that the latter may bereplenished. The scheme of circulation is completed by a 60 AIRPLANE DESIGN AND CONSTRUCTION hand pump p, which serves to produce pressure in the tankbefore starting the engine; cock 2…
