Furniture for the craftsman; a manual for the student and machanic (1914)
Otter, Paul D. (Paul Denniston), b. 1866 · New York, Davis Williams company · leaf 59

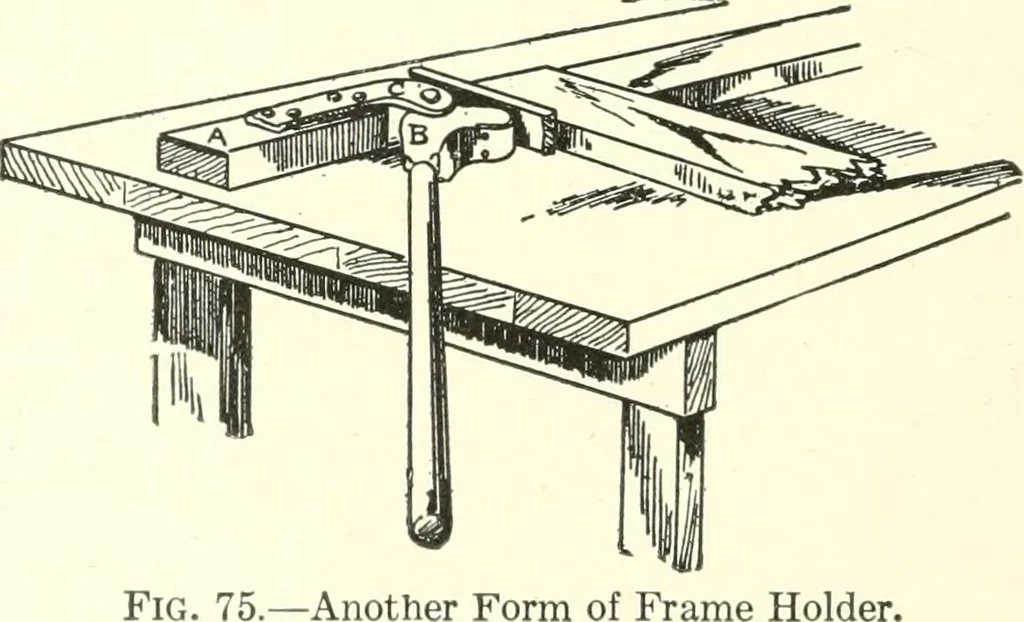

I Fig. 76.—Wheel and Screw Apparatus for Making Frames. passes is held firmly to the bench by two heavy staples claspingand passing through the bench top and washer plates under-neath, where they are drawn tightly by large nuts. In default ofthe wheel and screw the form shown in Fig. 75 is very… … Another Form of Frame Holder. in the block A and the large bolt in the block B. This will per-mit of the press being readily removed or set up when needed.The enlarged handle is reinforced by a piece of heavy brass platesecured well up on both sides. The L-shaped iron C centersover the lever with a…
Furniture making · Furniture finishing · Cabinetwork
