Furniture for the craftsman; a manual for the student and machanic (1914)
Otter, Paul D. (Paul Denniston), b. 1866 · New York, Davis Williams company · leaf 99

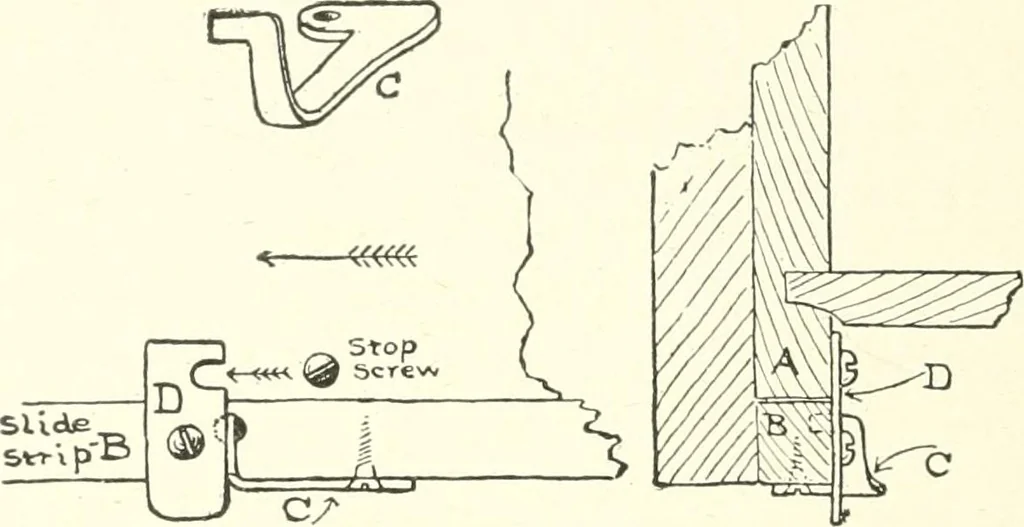

f the table frame, but the drawer itself must be madeto withdraw only to a certain fixed stop or check provided forthe purpose. This is to avoid an overbalance when the draweris being used as a writing bed. Some tables made are providedwith a concealed counterweight, but this is unnecessary if… … FlG. 115.—Details of Checking Device. cessible by throwing off the check or stop, which can be con-trolled by a simple mechanical device of an elbow joint or springpush button variety placed entirely out of view at one or bothsides under the drawer and somewhat to the rear. The draweroperates as an…
Furniture making · Furniture finishing · Cabinetwork
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
