Woodwork joints; how they are set out, how made and where used; with four hundred and thirty illustrations and a complete index of eleven hundred references (1921)
Fairham, William · Philadelphia and London, J. B. Lippincott company · leaf 120

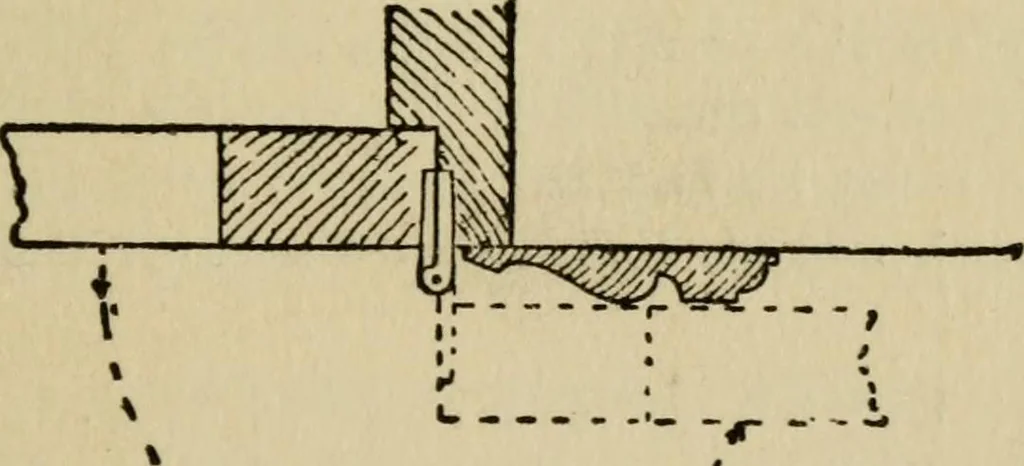

Fig. 252.—Open Joint Hingeing. Fig. 252 is termed open joint hanging, from the factthat when the door is open a certain amount of open … Fig- 253.—Clearing the Architrave Mould. space exists between the edge of the door and the doorpost.This open space varies according to the position in whichthe butt hinge is fixed. A section is shown at which the• 109 Joints in Woodwork pin of the hinge is let in level with the face of the…
Woodwork · Carpentry
