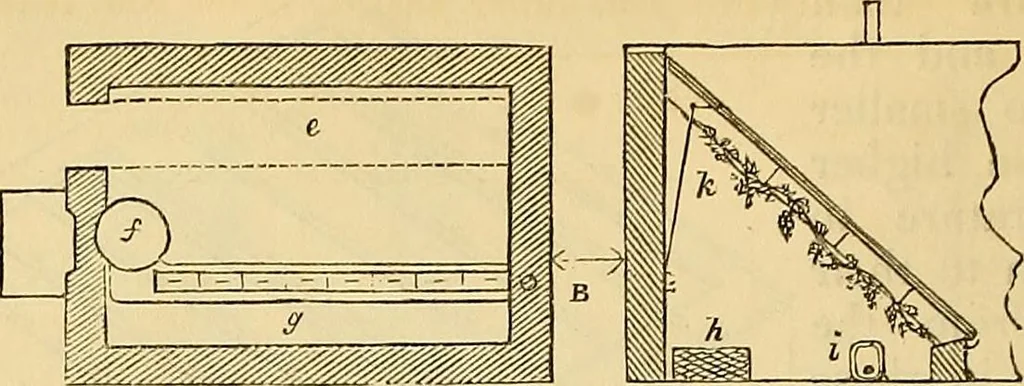

Fig. 4. Elevation and End View. a, End view of iron cover over stoke-hole. b. Ventilators which open inwards from below. c. Front view of iron cover. d, Chimney can. B 3 4, Application of Whites Patent Stove … Fig. 5. Ground Plan and Section. , Path. /, Stove. g. Hot-air flue, with flue covers on. h. Grating on cold-air drain. i. Section of hot-air flue, with smoke tube inside. k. Iron rod for raising ventilating sash, the sash shown shut.
