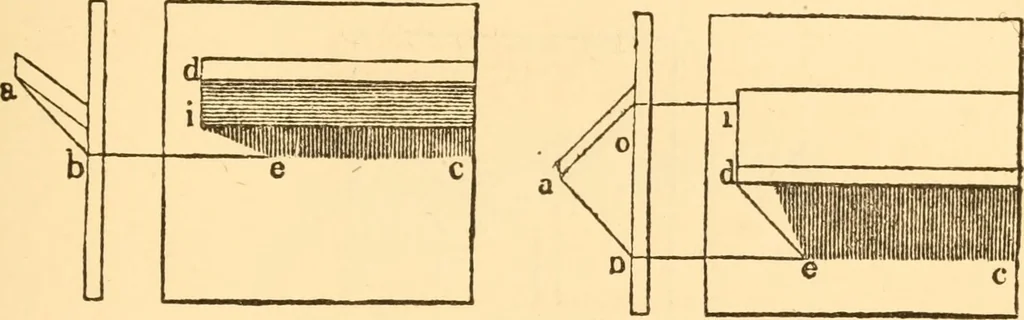

ted for finding the shadows of Fig. 426, and find the pointsdand c; then ad and dc will be the shadow required. Ifthe shelf had been parallel in width on the plan, then theline dc would have been parallel with the shelf a b. SHADOWS OF INCLINED AND CURVED SHELVES. 601 569.—To Find tlic ISSsado^v… … FiG. 429. Fig. 430. ing a line from d at the usual angle. In Fig. 429 join e and/; then ic and cc will define the shadow. In Fig: 430, fromo draw oi parallel with the shelf; join i and e; then ie andfc will be the shadow required. The projections in these several examples are bounded
