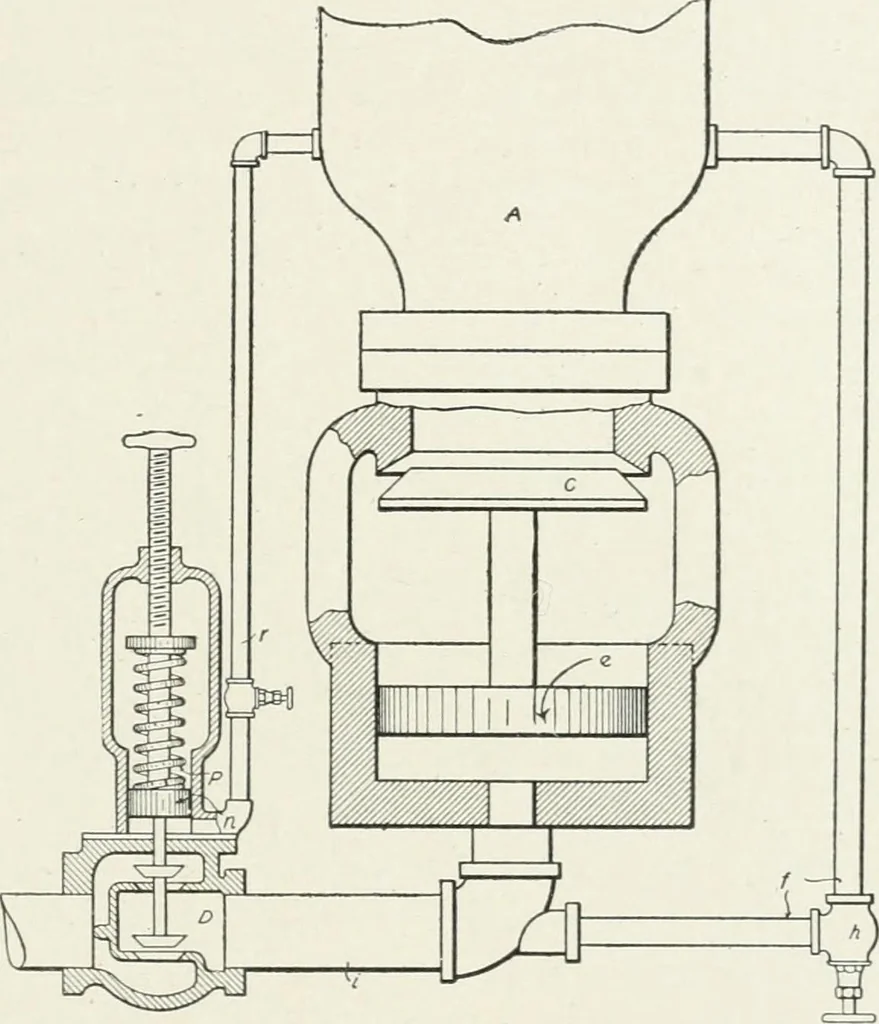

behindthe piston e is also connected through pipe i to the waste-valve D.This is a balanced valve, held closed by means of the spring P; whilethe water-pressure in the penstock, communicated through pipe r, andacting behind the piston n, tends to open the waste-valve. The forceof the spring P can… … Fig. 120. Diagrammatic Representation of LombardPressure-Relief Valve. IGO WATER-POWER DEVELOPMENT stock rising above the normal to the pressure for which the spring Pis set, the piston n will open the waste-valve, which will relieve thepressure behind the relief-valve piston c, and allow the…
