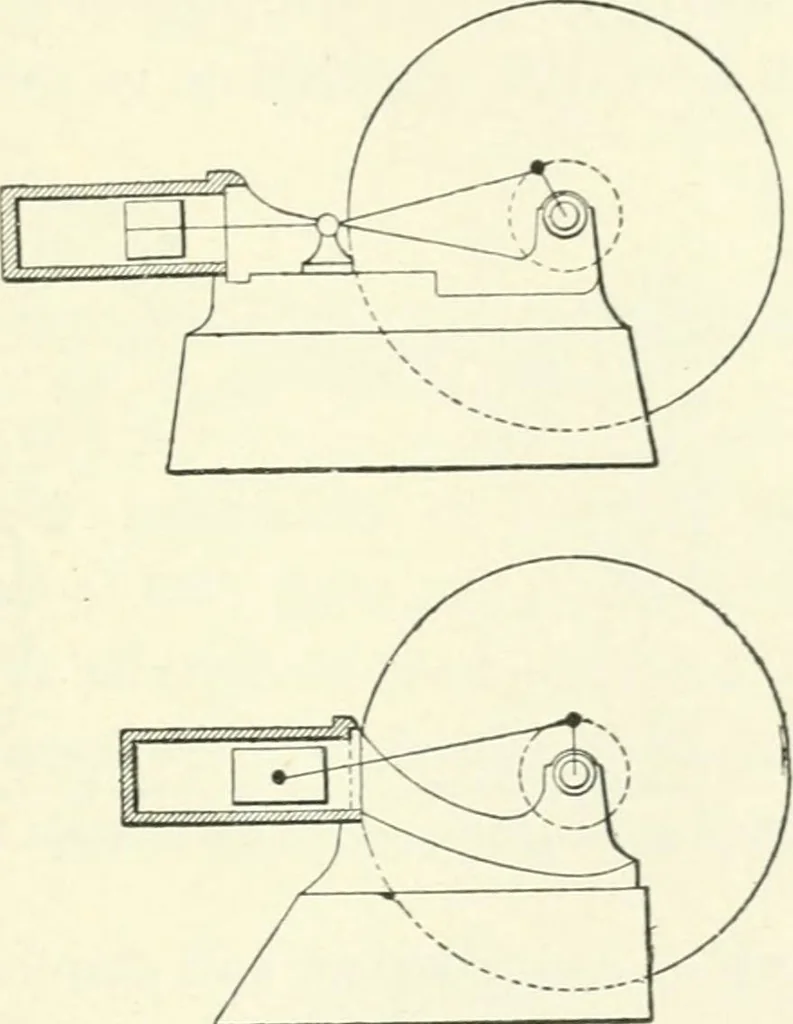

cylinders overhang the frame through-out the entire length, by reason of the joining of their FAULTS OF SINGLE-ACTING ENGINES 43 front portions with the frames. Although such a con-struction is attended with no serious consequences insmall engines, nevertheless in large engines it is ex-ceedingly… … FiG. 24.—Single-acting engines. action of the motive effort on the piston is, therefore,taken up entirely by the thrust of the cylinder, whichis also vertical (Fig. 24). This thrust, acting againstan unsupported part, may cause fractures; at anv rate,it entails a rapid deterioration of the cvlinder…
