The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 156

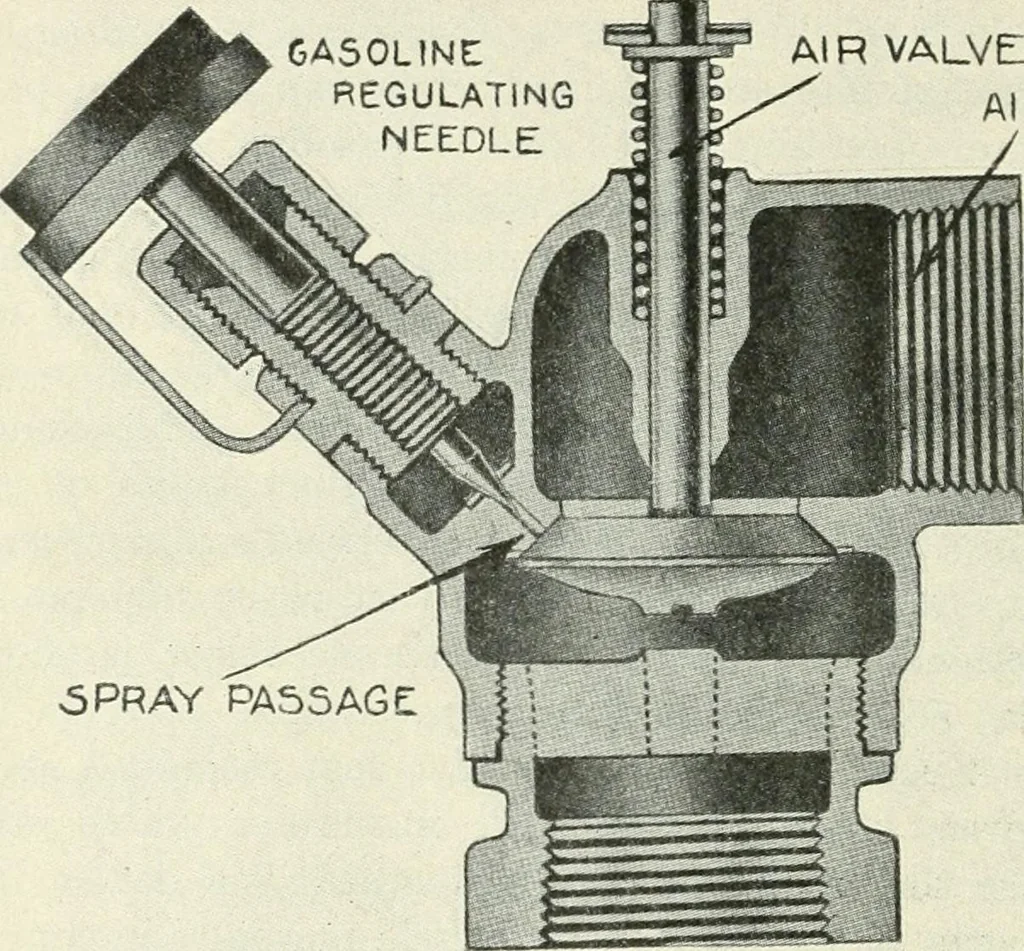

hmay be turned conveniently by a large knurled head.The passage is normally kept closed by the head ofthe mushroom valve. The device is attached to the 1C.2 The Modern Gas Tractor engine at the connection marked Mixture outlet andthe other end has free access to the air. When the piston draws in a… … 5PRAY PASSAGE! MIXTURE OUTLET Fig. 56.—Sectional View of Simple Vaporizer Valve. vaporized when it reaches the interior of the cylinder.As soon as the inlet valve of the motor closes, the smallair valve of the mixing device is returned to its seatby the coil spring and both air and gasoline…
Farm engines · Internal combustion engines
