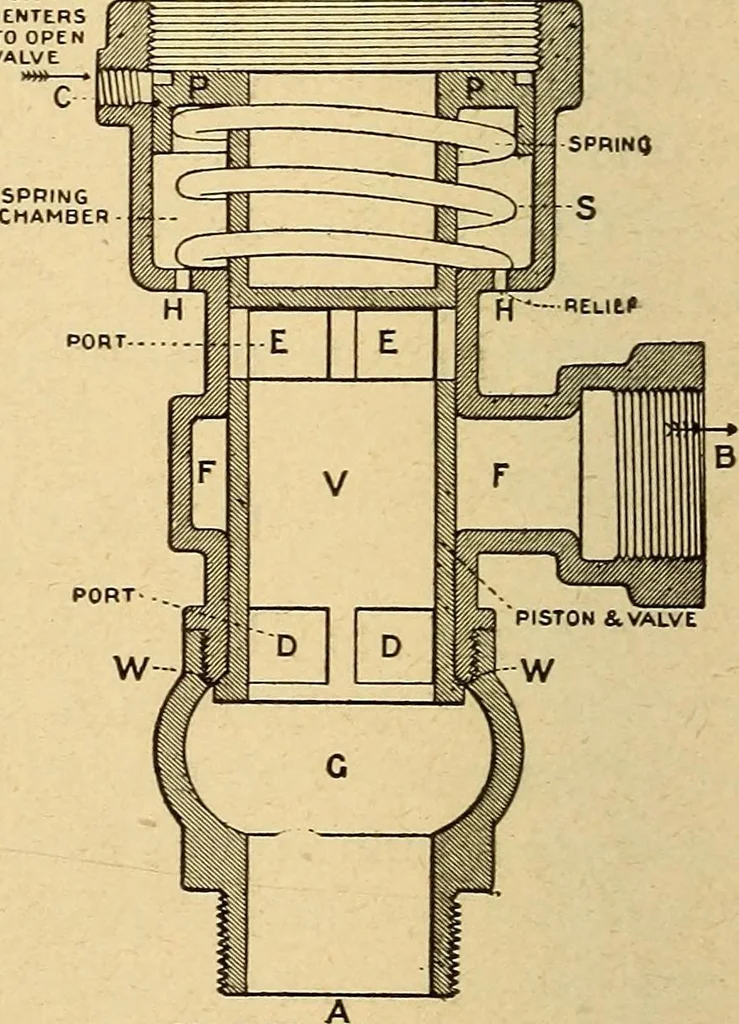

ught in the ports D-D or E-E would besheared off when the valve closes, and scale on seat AIR ORSTEAM ENTERS HERE TO OPENVALVE capK A—Connection to Boiler. B—Blow-Off to Atmosphere. C—Air or Steam Connection. D-D—Intake Ports of Valve V. E-E—Outlet Ports of Valve V. F-F—Annular Opening to Blow-Off… … CONNECTION TO BOILER Climax Blow-Off Cock. W-W ordinarily crushed. If the valve fails to closetight, open and close it quickly a few times until itforms a tight seat at W-W. The spring *S is for the purpose of preventing thevalve opening from any vacuum formed when theboiler is cooling down. Hence,…
