The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 206

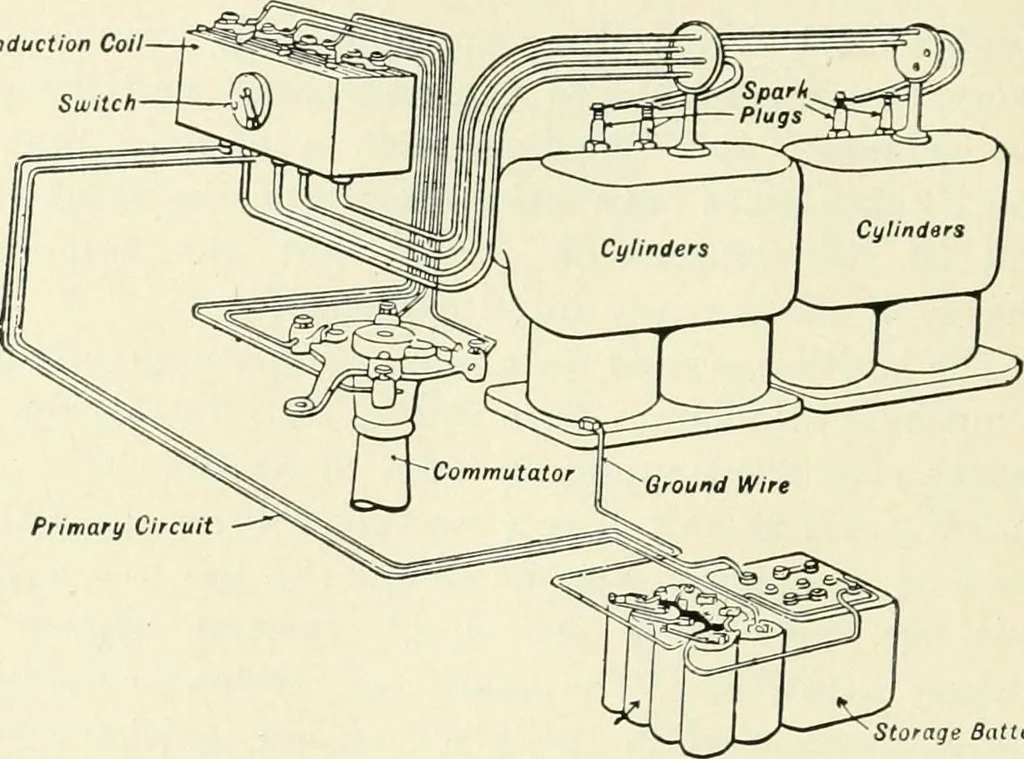

it of the coil fires one of the cylinders and the 212 The Modern Gas Tractor two-point timer serves to establish the circuit requiredto produce a spark at the proper time. As the explo-sions occur in regular order the contact points of thetimer, which is driven at half the engine speed, arespaced… … Primary Circuit Storage Buttery Fig. 76.—Four Cylinder Ignition System Utilizing BatteryCurrent. outlined at Fig. 76. The commutator, or timer in thiscase, is a four point type, having four insulated con-tacts and one revolving member which establishes theproper connection with each of the…
Farm engines · Internal combustion engines
