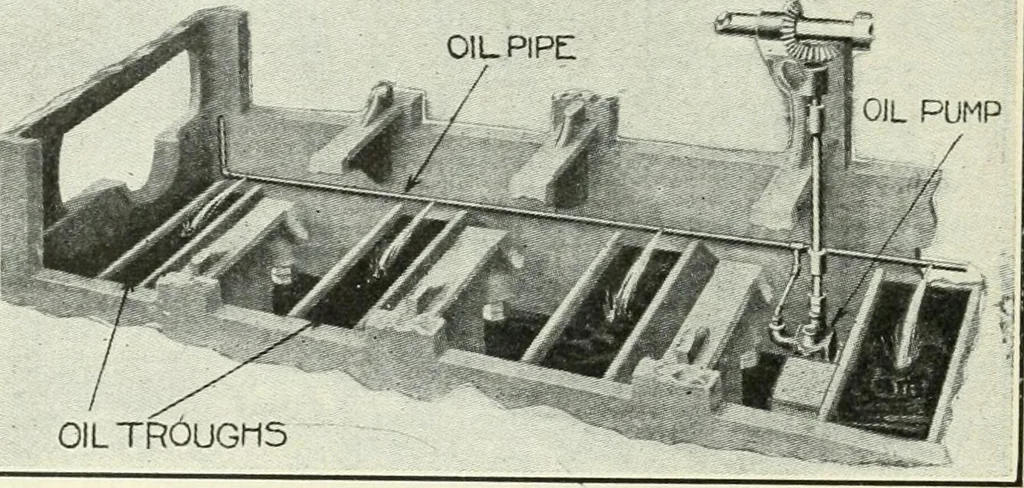

ted bythe heavy lines. An oil lead goes to each main bearing,and after it has served its purpose there the oil is takenthrough the passage in the crank shaft and led to thefour connecting rod bearings, from which it is thrownaround the interior of the motor by centrifugal forcefrom the rapidly… … 0ILTR6UGM5 Fig. 89.—Method of Supplying Oil Troughs of Holt TractorMotor Crankcase. determined by the height of the standpipes in each crank-case compartment. This height is just enough so thelower portions of the connecting-rod caps just skim overits surface and pick up some of the lubricant and…
