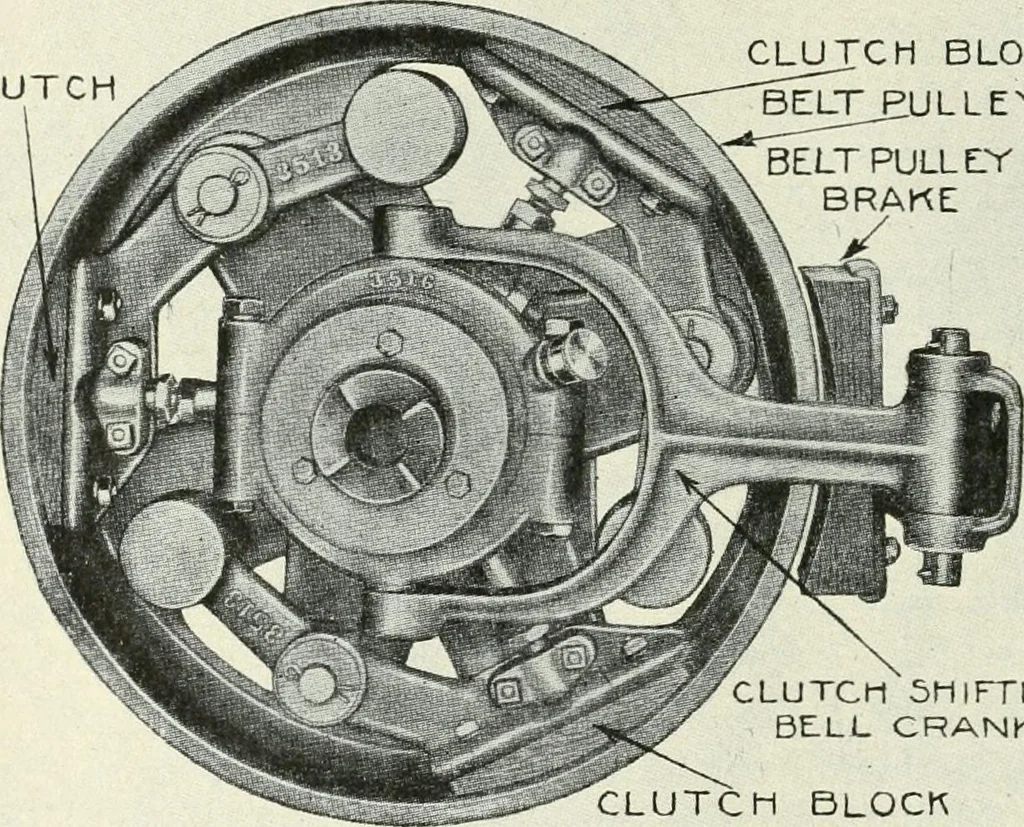

Gas Tractor fly-wheel revolves. Attached to the driving shaft is aflanged member which carries a number of bell cranksspaced equidistantly or 120 degrees apart. This drivenmember also carries a plate which is keyed to it and whichmust revolve with the driven shaft. This plate can moveback and forth… … CLUTCH SHIFTINGBE.LL CRANK UTCH BLOCK Fig. 97.—Clutch of Avery Tractor is Provided With ThreeClutch Shoes. position shown, where the toggle links are approximatelyvertical and the bell cranks are holding the driven anddriving plates of the clutch into firm engagement. When the clutch-link actuator…
