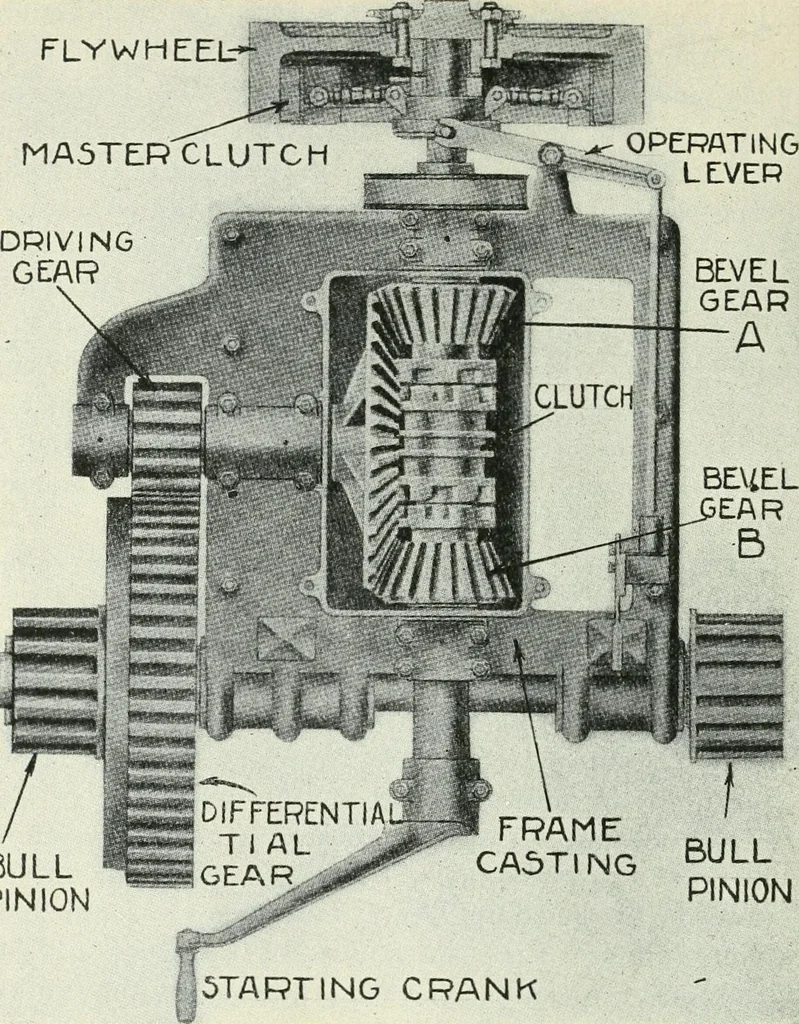

produce motion of thetractor. The drive from the transmission cross shaftis by a pinion which engages a large gear attached to thedifferential spider. The differential gear is attached toa cross shaft to which the bull pinions, which drive thebull gears on the rear wheels, are attached. Ijt will… … BULLPINION IDIFFERENTIAl*^ lGlAR-.X^cA5ViNG BULLiGEAR ..^ PINION i5TARTING CRANK Fig. 103.—Master Clutch and Reversing Mechanism of Typical Tractor. reverse drive as when the tractor is moving ahead.Why Reversing Mechanism Is Needed.—Anotherdifference between the steam and gas engines used…
