The modern gas tractor, its construction, utility, operation and repair; a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction of all parts, their installation and adjustment as well as practical application of tractors in the field (1914)
Pagé, Victor Wilfred, 1885-1947 · New York : Norman W. Henley · leaf 293

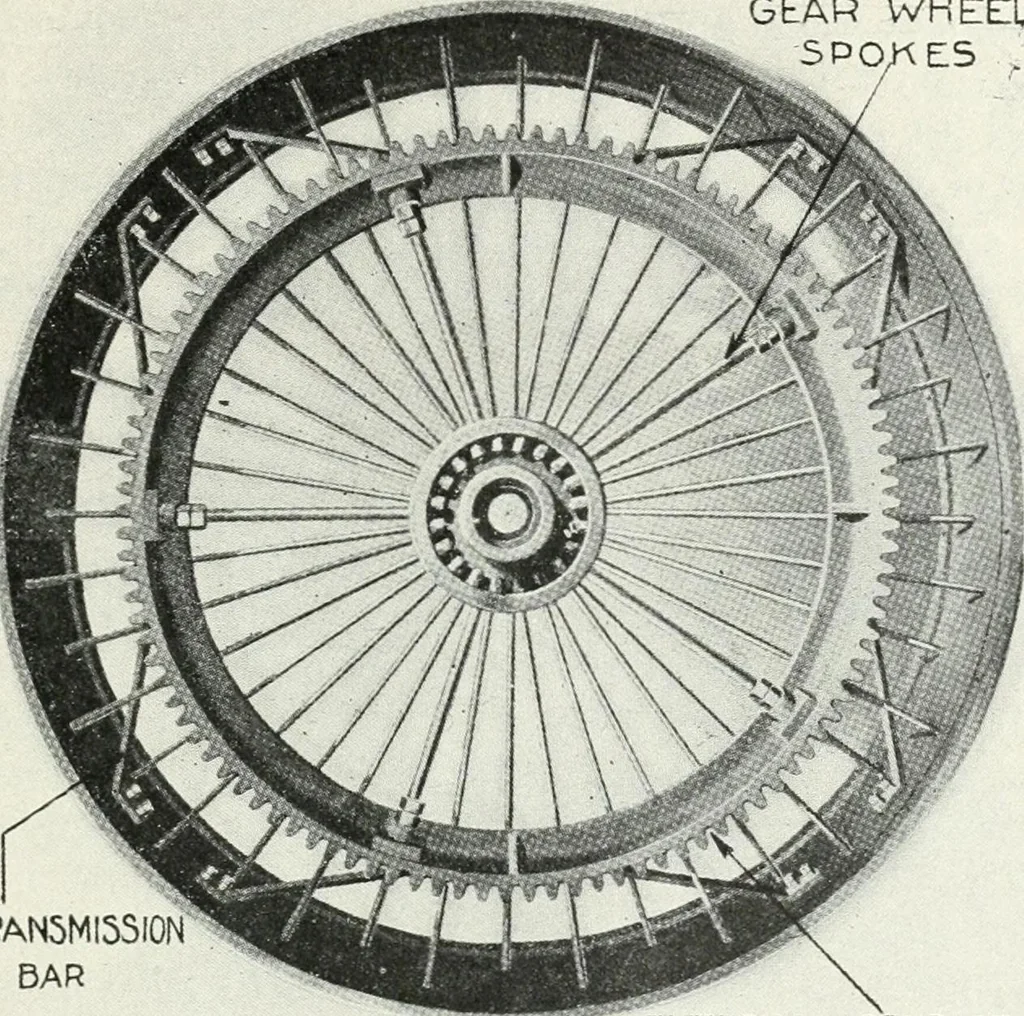

reduced and thegrade corresponds to but 55 per cent. It will be evidentby study of diagram why the large wheel is superior tothe member of less diameter. Methods of Construction.—The best driving wheelconstruction is known as the built-up type of wheelwhich is lghter than the cast wheel and which… … TRANSMISSIONBAR EXTERNAL SPUR GEAR Fig. 121.—Tractor Driving Wheel Showing Method of Attach-ing External Spur Bull Gear to Wheel Hub and Rim. made of flat bars which are bent over and riveted tothe rim of the driver. Each spoke is attached to thehub by rivets and the weight of the engine is…
Farm engines · Internal combustion engines
