The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 306

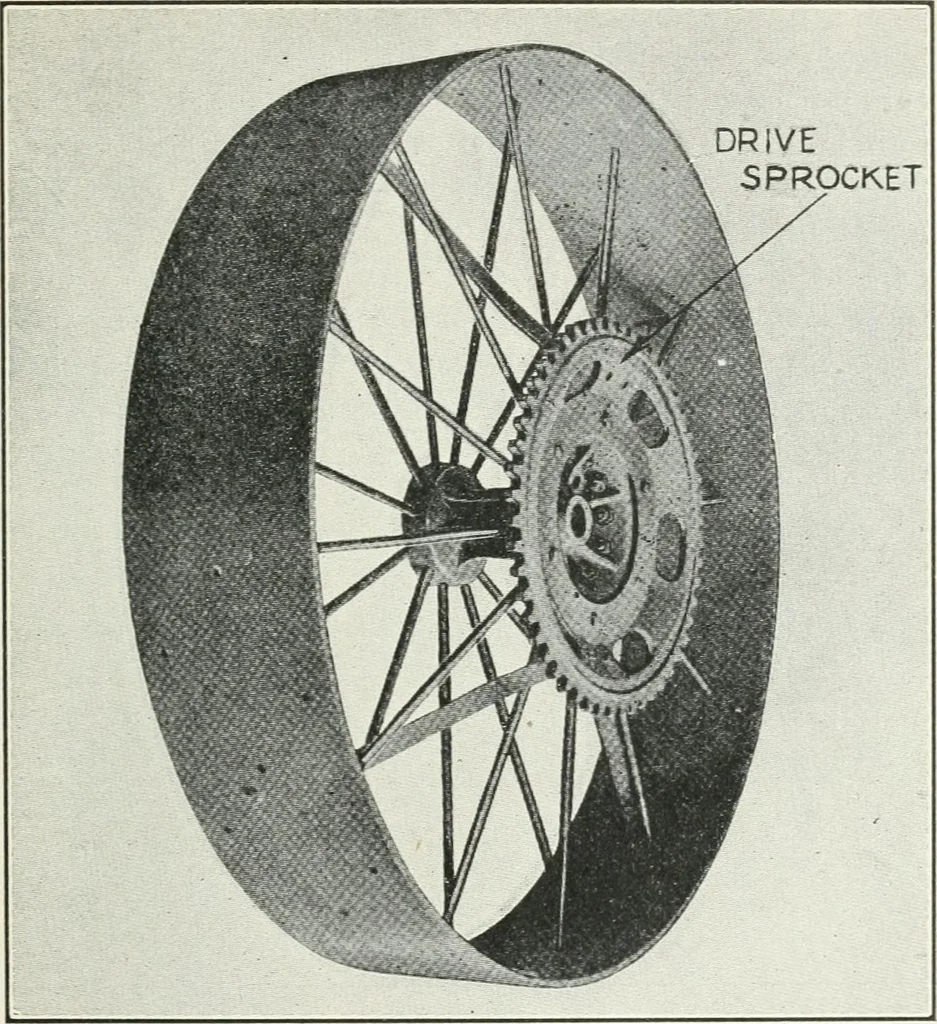

LUG TO WHICHDRIVING GCAR 15FASTENED Fig. 123.—Traction Wheel of Gas Tractor With Spring Mem-bers to Remove Shocks From Driving Gears. The Modern Gas Tractor 299 … Fig. 124.—Driving Wheel of Tractor Utilizing Chain Drive. as would obtain if the bull gear was attached directlyto the wheel rim by non-yielding transmission rods. The wheel depicted at Fig. 124 differs from thosepreviously shown in that it is provided with a drivingsprocket instead of a spur gear…
