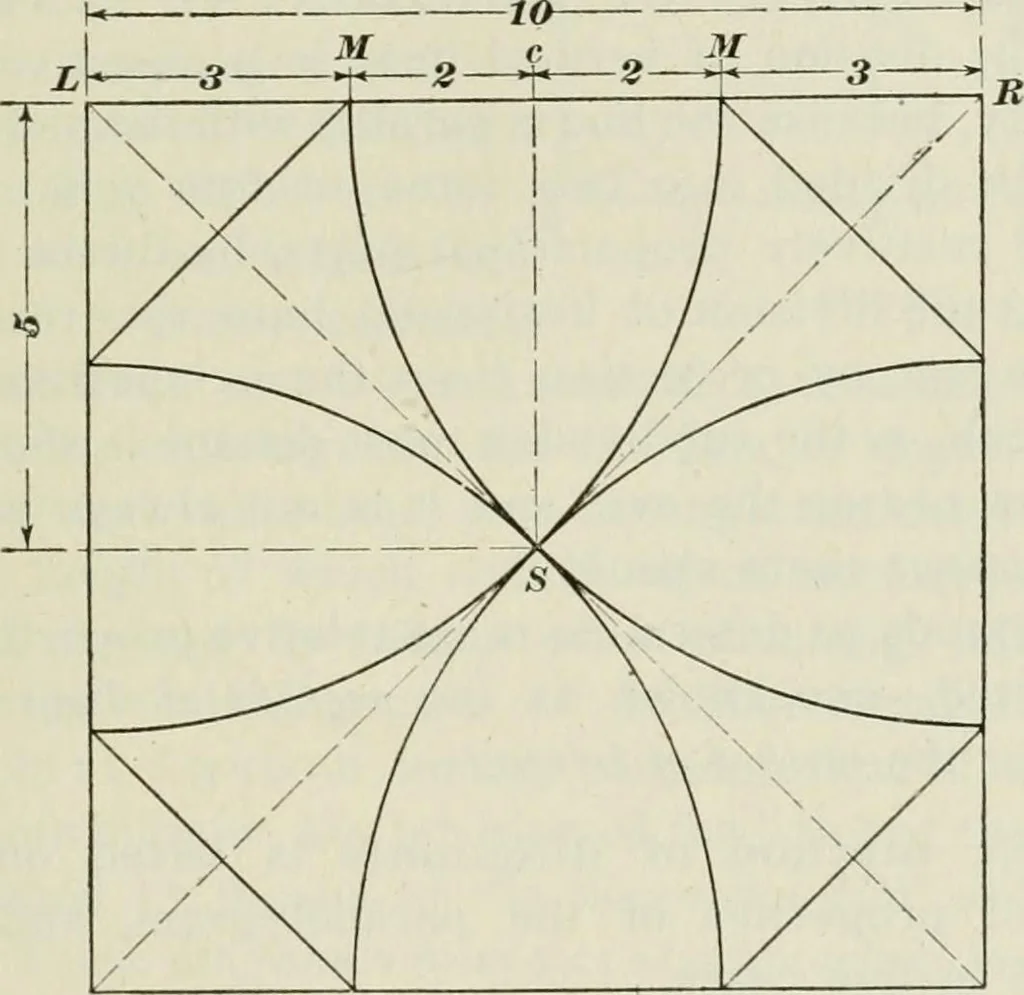

points (see rule III, Art. 7).Therefore, as 5 is equidistant from V^ and F, It follows thatM^ and M^ are equidistant each side of V^. It will be noticed that a point of simplicity in this arrange-ment is found in the ease with which the various measuringpoints and vanishing points may be located,… … Fig. 20 four corners of a S(|uare, a distance is laid off on each sidee(|ual to one-half the diagonal, thus locating points from whichlines may be drawn to cut off the corners of the square toreduce it to an octagon. The section of the square LSR willbe found to correspond exactly with the horizon…
