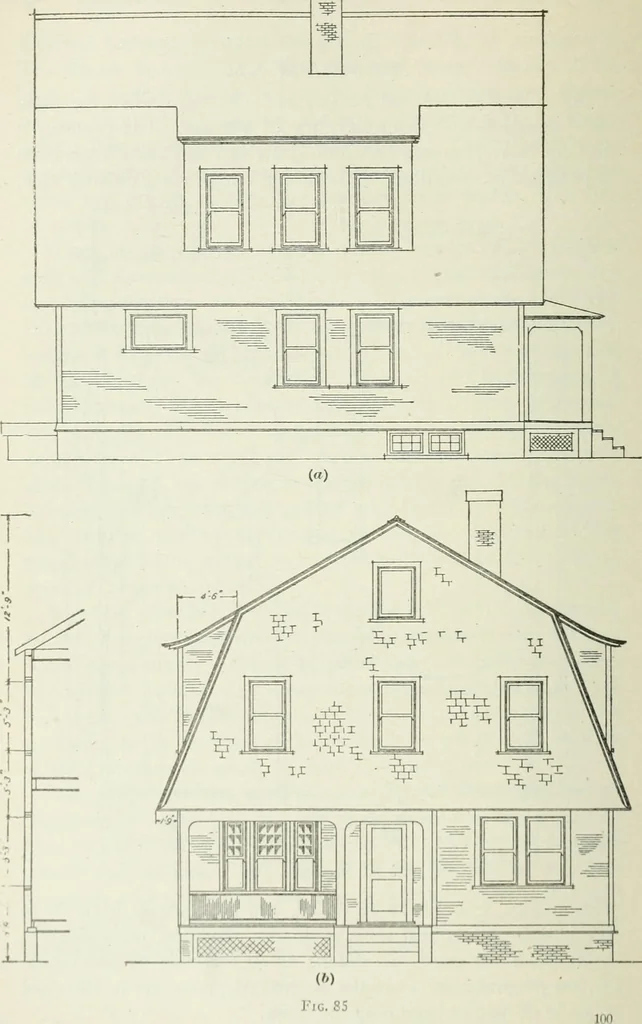

An illustration from Geometrical drawing, projection drawing, freehand and ornamental drawing, wash work and brush drawing, elementary perspective drawing, architectural drawing, 1921, leaf 395
Fig. 84 for, in Figs. 9 to 12, 15 to 19, 29, and particularly Figs. 59 to64, it was shown just how to do this, and the accompanyingtext directions gave full details as to methods of procedure.A few general hints as to the method of procedure in this casemay be of help in beginning the work. r=;r … §5 ELEMENTARY PERSPECTIVE DRAWING 101 Use a 20X15 sheet of paper, and establish the vanishingpoints V^ and P at the extreme edges, thus making them20 inches apart, and any convenient distance below the topedge of the sheet, and make V^ midway between. Use a scaleof 5 inch=l foot. Lay out a…
