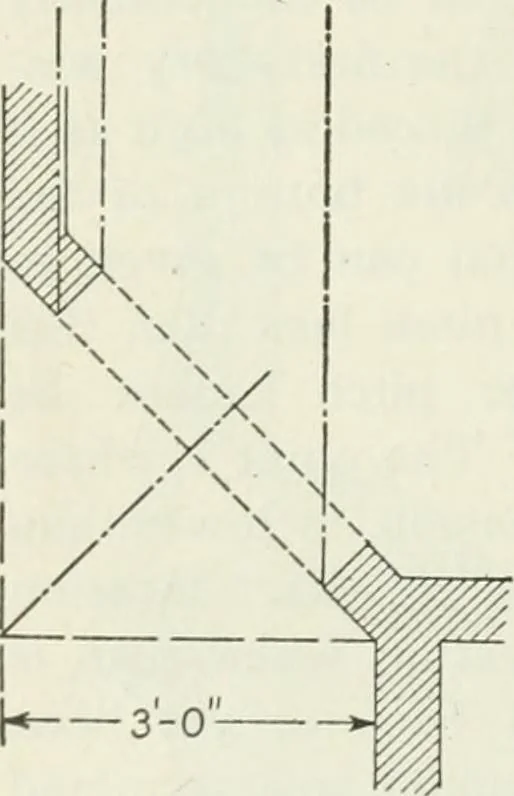

e with the originalelevation and plan, it will be necessary to go back over thiswork and make corrections. The windows in the parlor areso placed as to divide the wall approximately into equalparts, and the window in the hall is in the middle of its wallspace on the interior. The door to the dining… … §7 ARCHITECTURAL DRAWING 73 65. The drawing plate should now present an appearancesomewhat similar to that shown in Fig. 38, and as the gen-eral details are all located, the drawing can now be finished.The moldings of the main roof should be drawn from^ to h,observing that these details are the…
