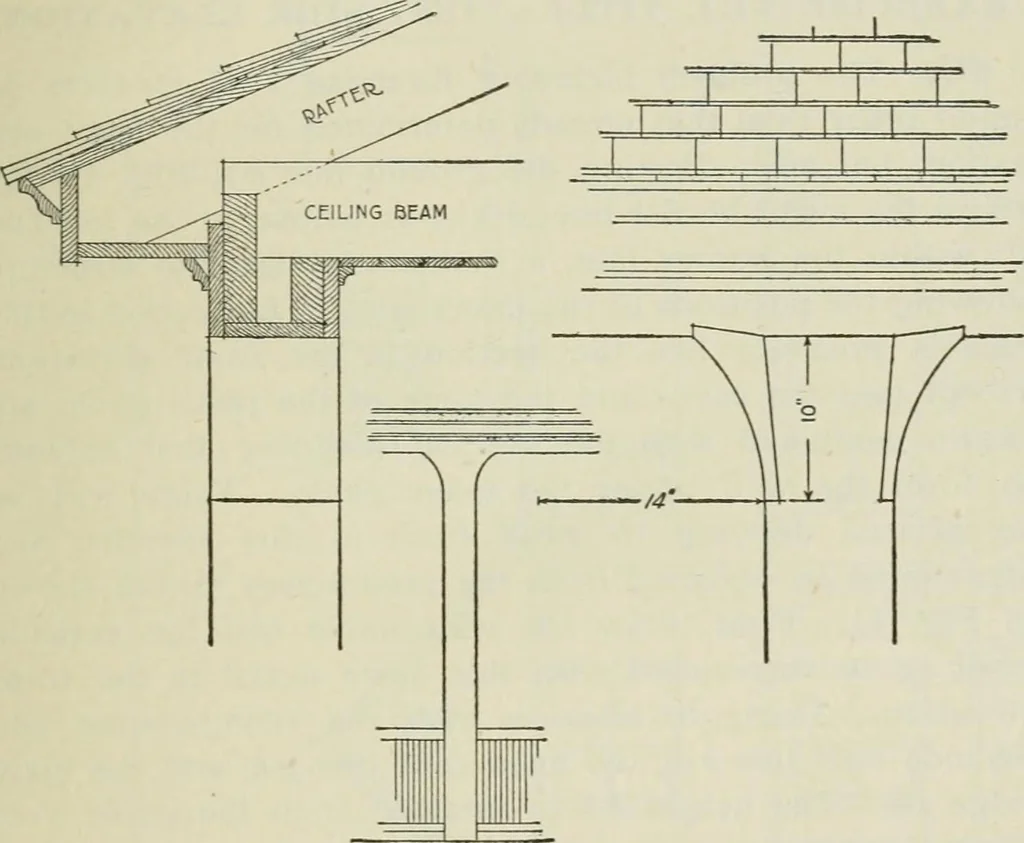

(! below the housefloor and 2 d below the l)ottom of the windows. The glassof the door and the hall window may be leaded in simple ARCHITECTURAL DRAWING 75 patterns. These should be sketched in as shown in Exer-cise VII. Vestibule and outside doors are shown on alarger scale in Figs. 58 and 59.… … flues, as was determined in drawing the second-story plan,and therefore must be at least 2 4 wide and 3 4 long.As it pierces the roof at the highest point, it need not extendmuch above the ridge, and on this elevation it will show2 4 wide and 3 4 above the point of the gable. If thechimney came…
