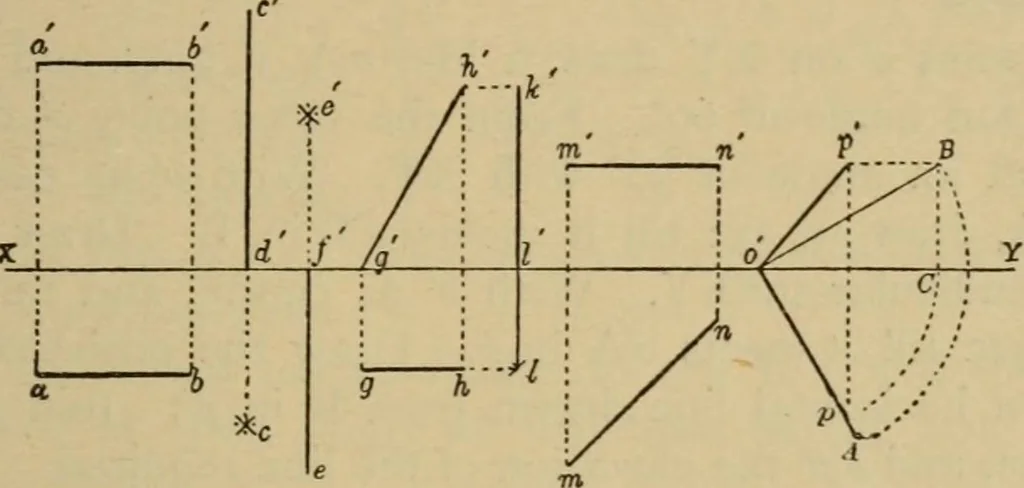

tances to be 3 from the H.P. and ih from, the V.P.Scale J full size. Fig. 292. Draw XY, and iV below it draw the line a^ 2^ long. Drawthe projectors aa and bb at right angles to XY, and 3 above it.Join ab. 211. To project a line CD 3| long to the same Scale, parallel tothe V.P. and 2^ from it, but… … 212. To project a line EF 3 long to the same scale, parallel to theH.P. and 2j above it, but perpendicular to the v.p. Fig. 292. Below XY, and perpendicular to it, draw the line ef 3 long.Draw the projector/V 2^ long, ef is the plan, and e theelevation or V. trace. 213. To project a line GH 3 long…
