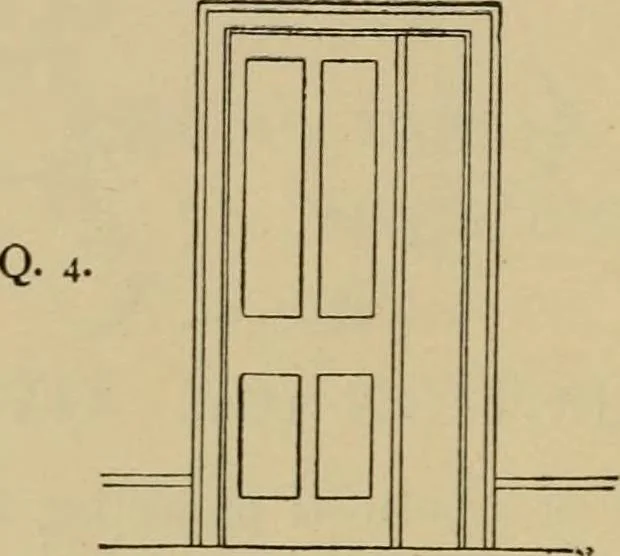

3) of an octagonal tray or dish, the heightof which is |. Make an elevation on the given xy. Only the visiblelines need be shown in elevation, and the thickness of the material isto be neglected. 4. The diagram (Q. 4) represents a doorway in a wall, the doorbeing shown opened at an angle of 45°… … Q-5- 5, The plan is given (Q. 5) of a square slab, a5 being one edge of asquare base. Draw an elevation on a vertical plane at right angles toad. Show in plan the section made by a horizontal plane containingad. Q. 6. I. — .....J Q.7. 6. The plan and end elevation are given (Q. 6) of a simple…
