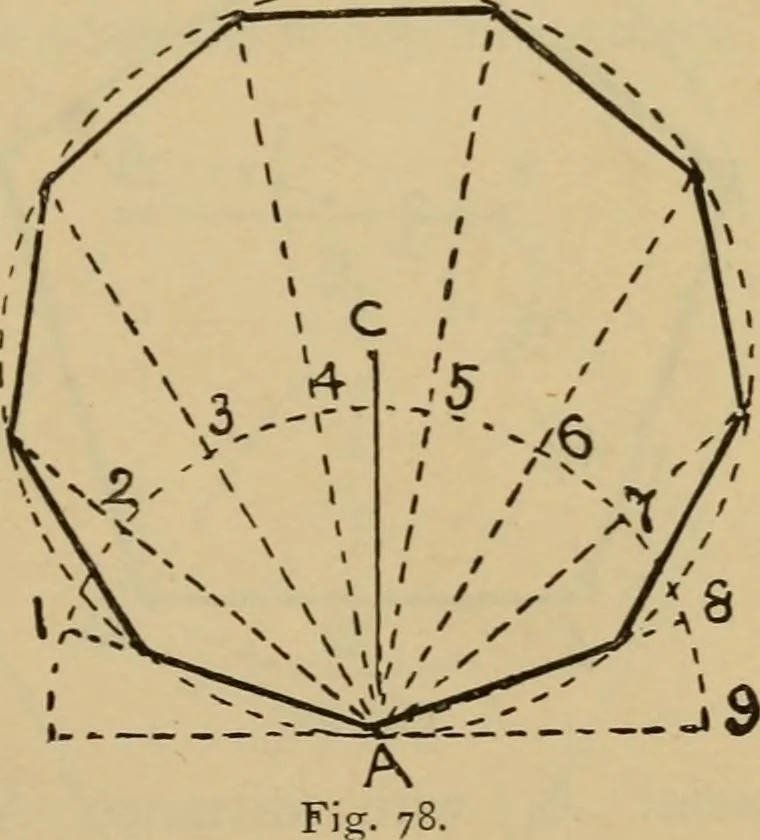

mple, a nonagon. Describe a circle, and draw the radius CA. At A draw atangent to the circle. WithA as centre, and with anyradius, draw a semicircle, anddivide it into as many equalparts as there are sides tothe polygon (in this instancenine). From point A draw linesthrough each of these… … 34 GEOMETRICAL DRAWING AND DESIGN. 41. On a given line AB, to describe a regular polygon;for example, a heptagon. Produce AB to C. With A as centre, and AB as radius, describe a semicircle, anddivide it into as many equaldivisions as there are sides tothe polygon (in this instanceseven). Join A…
