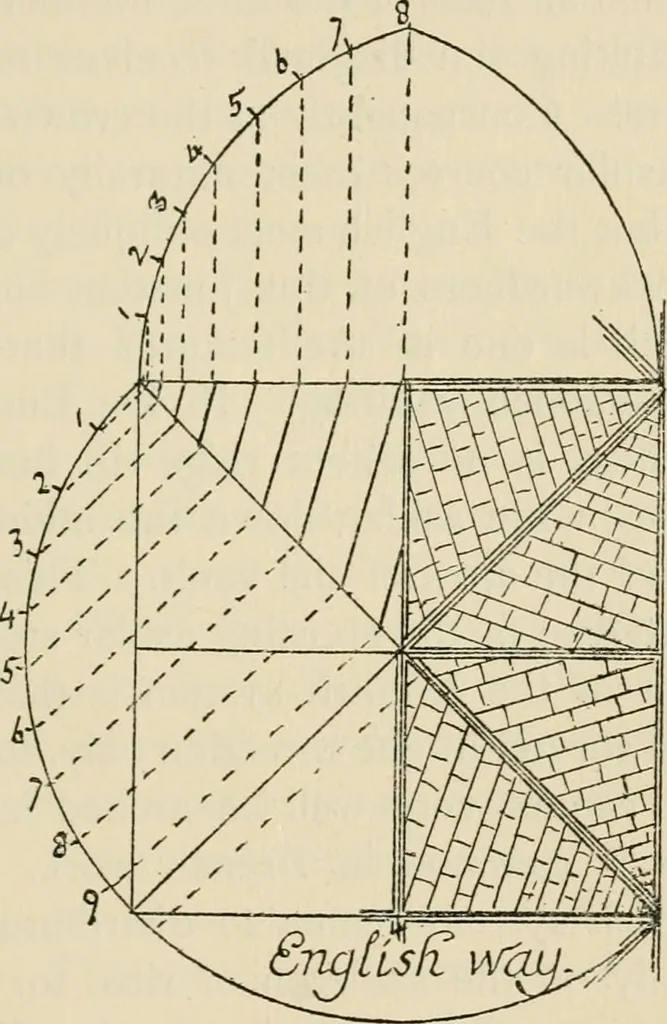

ault the transverse or the wall-rib would be dividedinto so many equal parts to mark the width of the ashlar CH. XIl] EARLY ENGLISH 213 courses, and the diagonal would be divided into the same Difference number of parts, but these would each be longer than French those on the direct arches, because… … Fig. 91. the beds of the ashlaring of the panel, which will ofcourse be parallel to the ridge lines, because the divisionsof the two arches are equal in number though not inlength. On the other hand, in setting out an Englishvault the divisions on the diagfonal are made of the Thesame length as…
