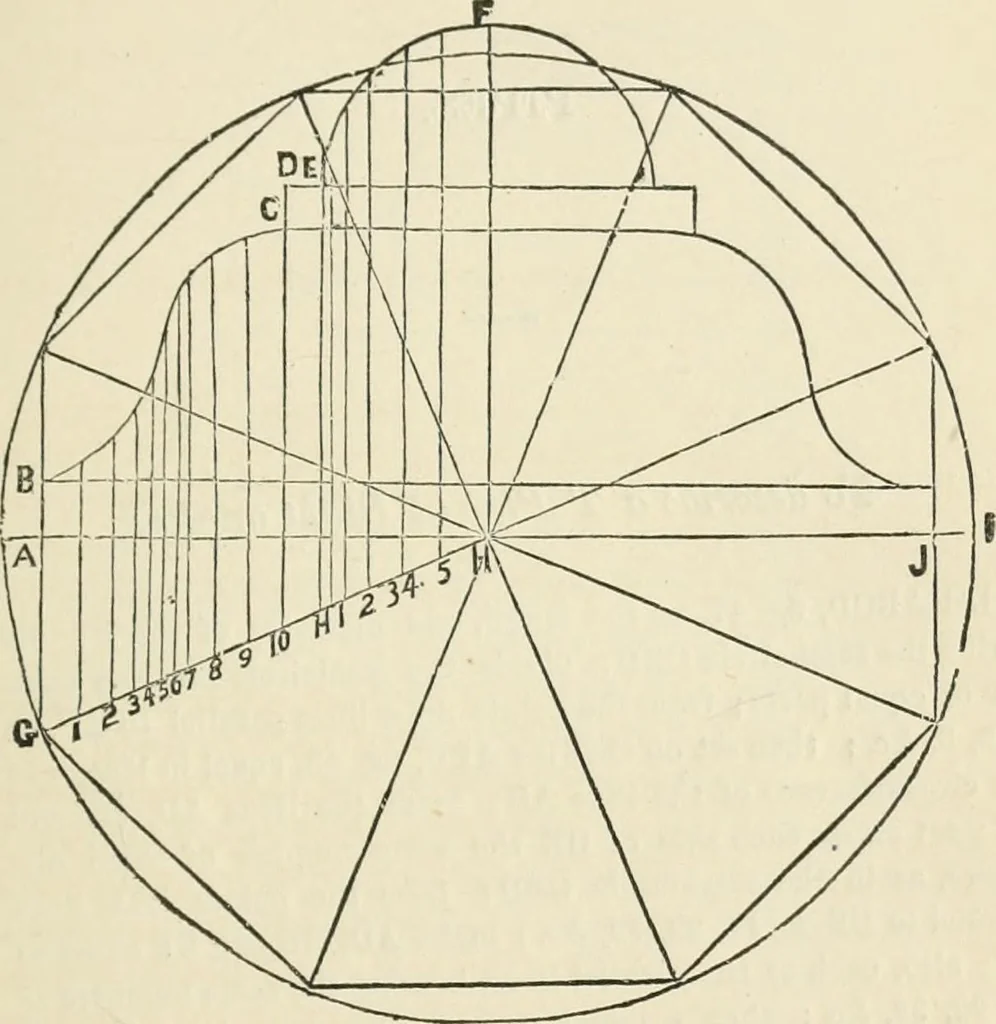

e CD equal to CD, and DH equal to DE ;make HF equal to the curved line EF ; divide HF into the samenumber of equal distances, as in the curved line EF; from thepoints draw lines parallel to GE ; make AGAE and BIBJ equal toGA ; also, each of the parallel lines bearing the same figures as1, 2, 8, 4,… … Pig. 46
