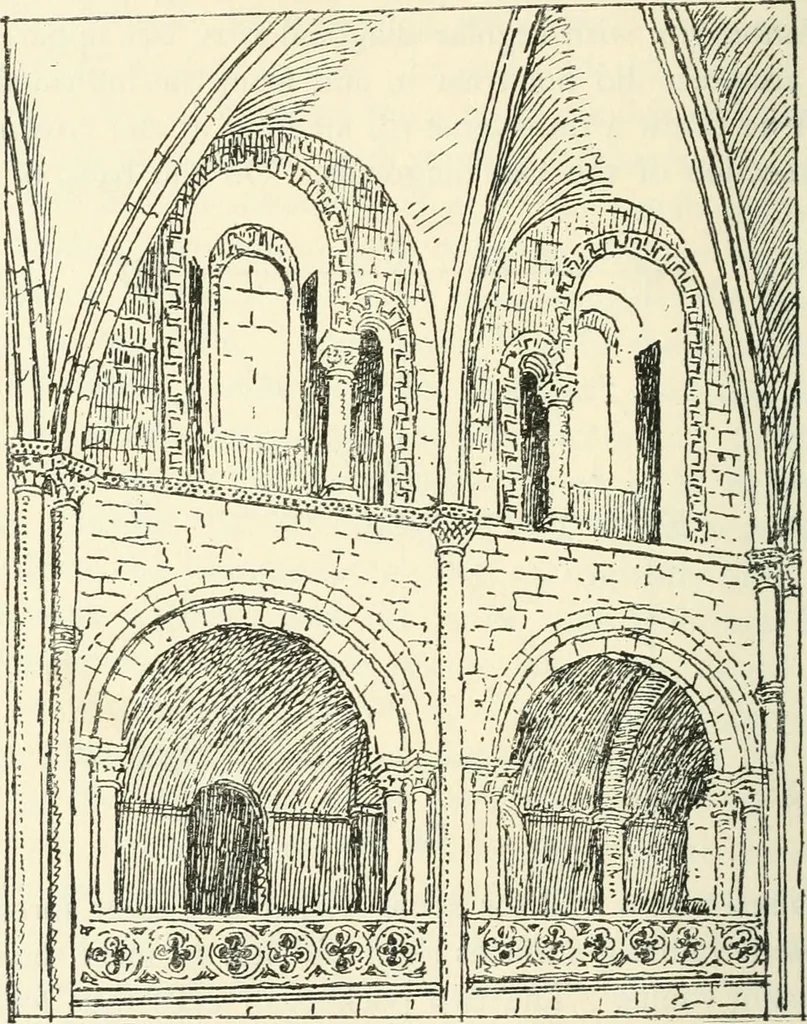

centre of the mainvault where the various ribs met. In Fig. 13 AD andBC are the transverse arches dividing the bays, andAC and BD are the diagonals: EF is the intrudedtransverse arch, G the common point of intersection, and 42 THE GOTHIC VAULT [CH. Ill the dotted lines show the direction of the… … Fig. 14. segmental, struck from a point below the springing, adevice no doubt to avoid a domical crown ; and thesurfaces of the panels are very winding. In the vault of the Abbaye aux Dames at Caen ch. m] THE GOTHIC VAULT 43 this is avoided by not turning any vault from the Abbaye J & J aux…
