United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 262

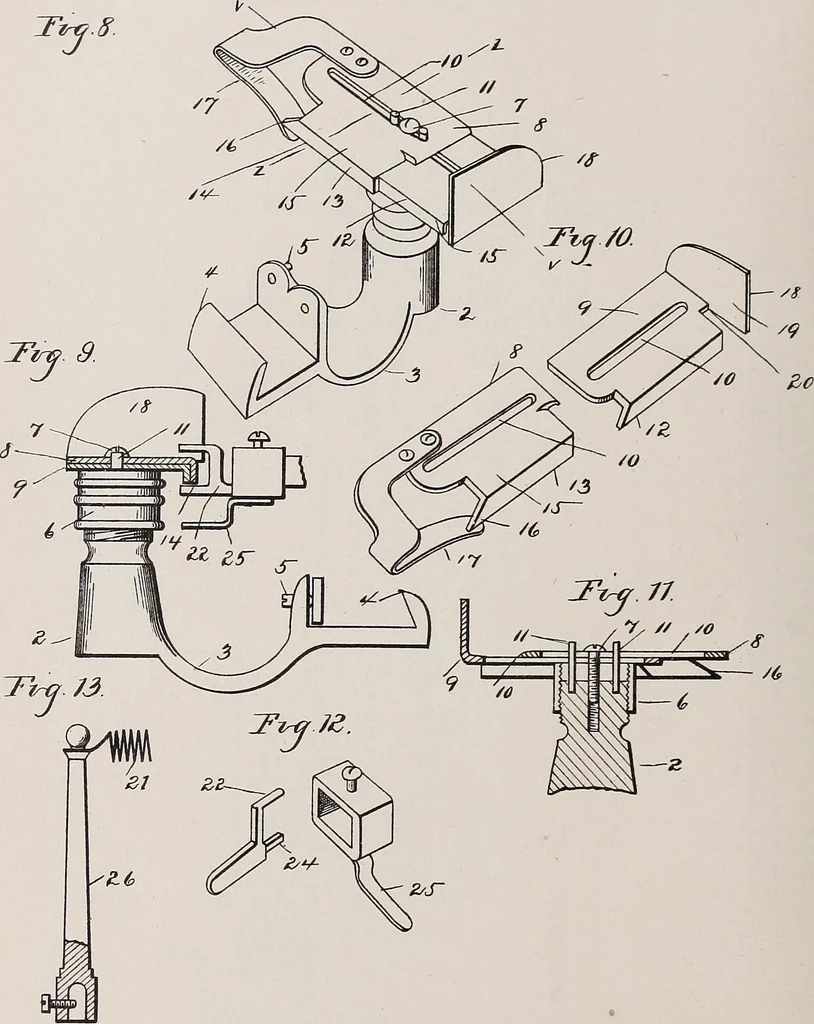

^-i^^ a-UlTHO., WASHINOTON, D. C (No Model.) 4 Sheets—Sheet 4. J. H. LINa. COIN OPERATED MECHANISM FOR PHONOGRAPHS. No. 495,557. Patented Apr. 18, 1893.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 262](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten02unit-262-110.webp)
