United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 282

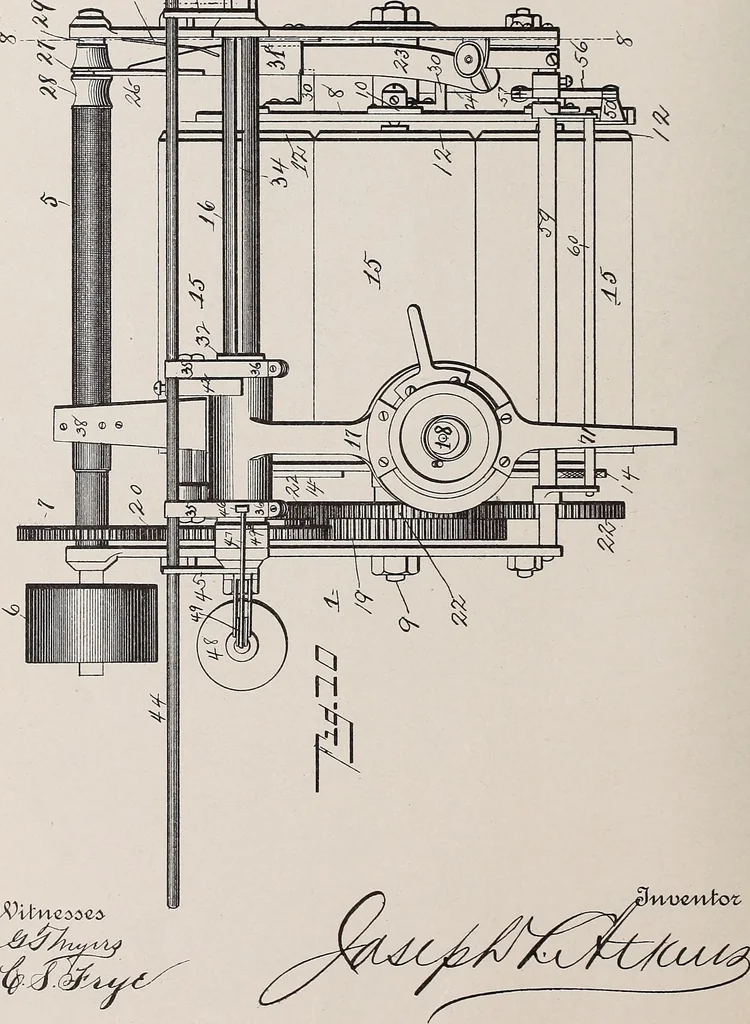

THE NORRIi PeTERi CO. PHOTO-LIThO., WASHINGTON, | I (No Model.) No. 495,869, J. L. ATKINS. TALKING MACHINE. 8 Sheets—Sheet 8. Patented Apr. 18, 1893, ^ ^ i^ B. ^ … THE NORRIS fETERS CO. t>HOTO.UTMO. V United States Patent Office, JOSEPH L. ATKINS, OF WASHINGTON, DISTRICT OF COLUMBIA. TALKING-MACHINE. SPECIFICATION forming part of Letters Patent jSo. 495,869, dated April 18,1893. fl-pplication filed August 27,1892. Serial 1^0,444,287. ^No model.) To all…
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 282](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten02unit-282-129.webp)
