United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 181

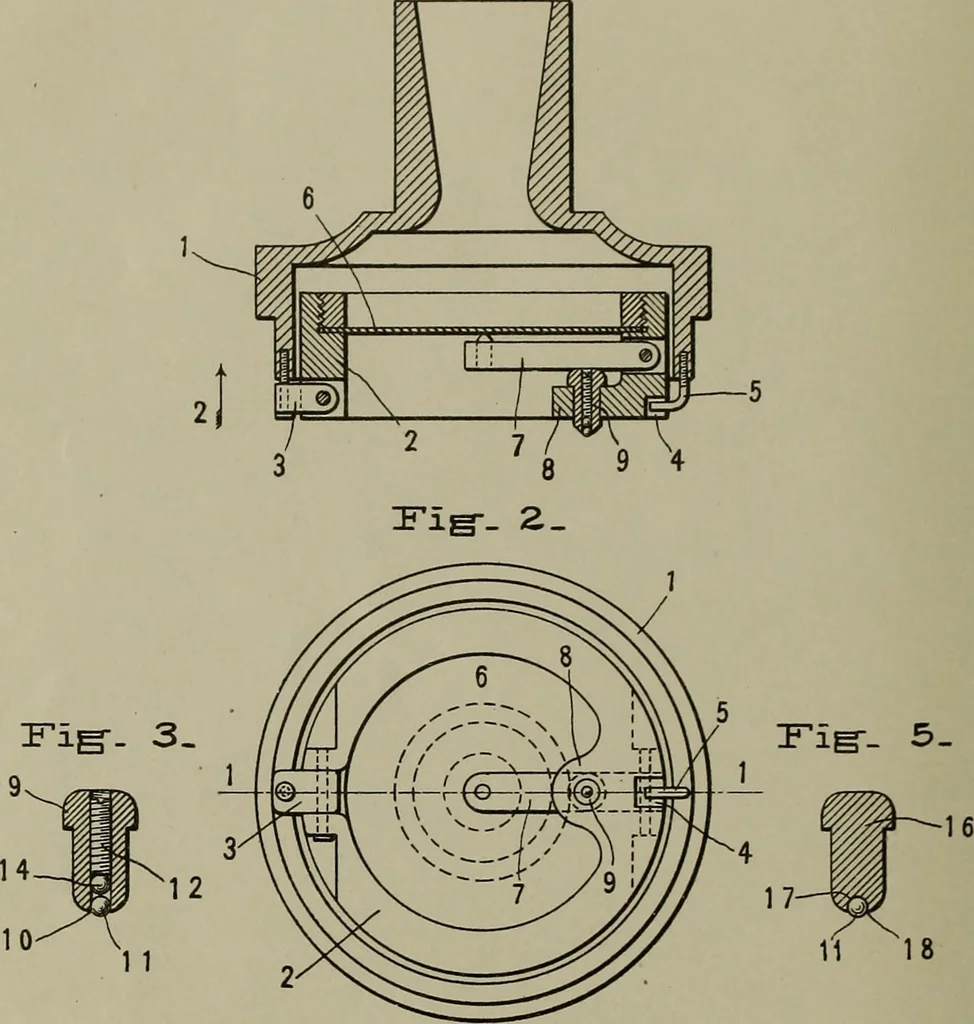

fixed to thepeiiphery of the diaphragm ring in a planesubstantially parallel to that of the dia- 30phragm, a stylus clamp fixed to said spring-plate, and a vibration-transmitting connec-tion between the diaphragm and the stylusclamp. In testimonj^ whereof I have hereunto set 35mv hand April 1908.… … IFig-. 4». Ti^- 6.
