United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 232

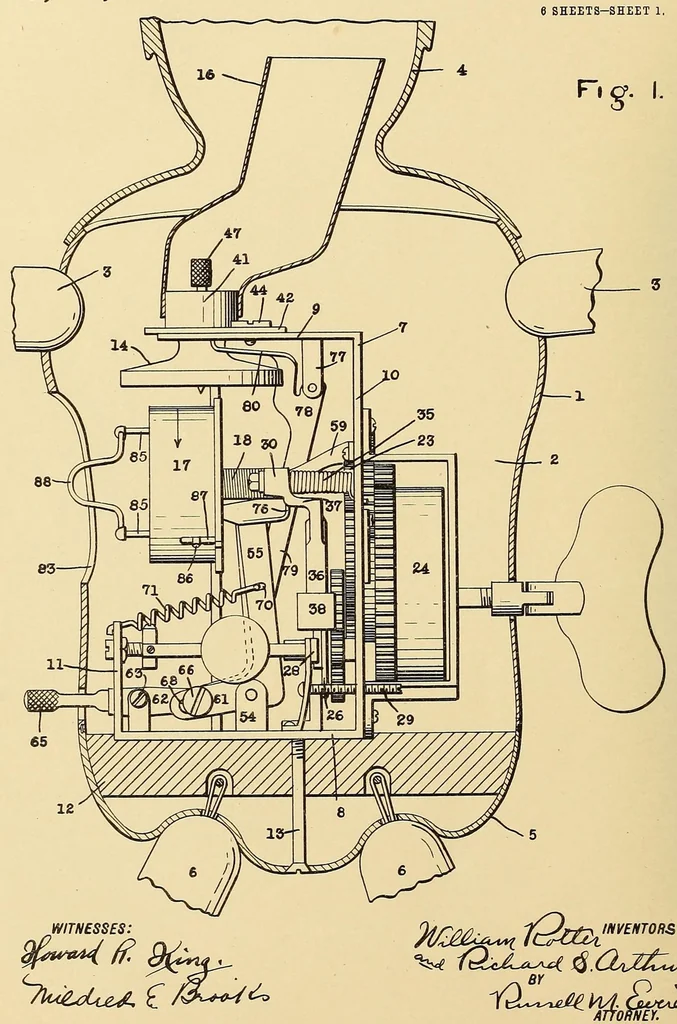

W. ROTTER & R. S. ARTHUR. PHONOGRAPHIC DOLL. APPLICATION FILED JUNE 19, 1913. Patented May 26, 1914. 1,097,771. 6 SHEETS-SHEET 1. … COLUMBIA PLANOOEAPH CO., WASHINOTON. D. C.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public domain (published before 1931). Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 232](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten14unit-232-0.webp)
