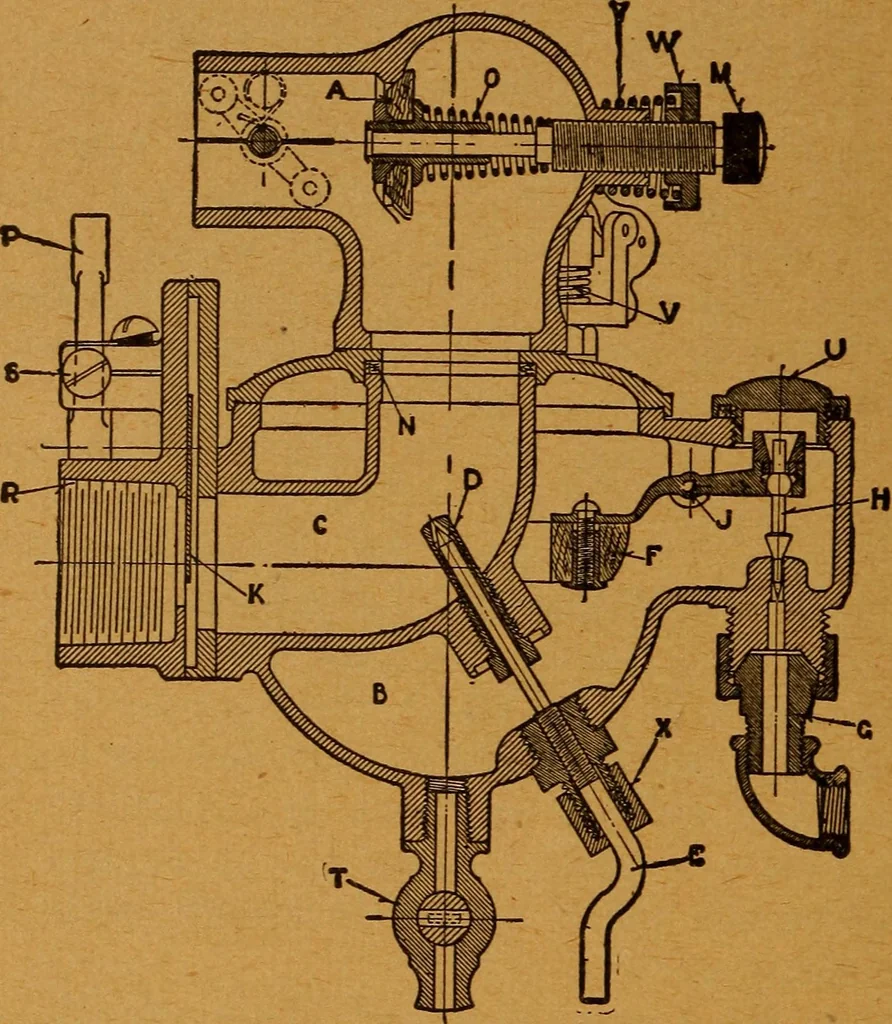

uccessful carburetors on the market, so many in fact that wehave room for the description of only three or fo.ur of themost prominent, but we will say that the well known car-buretors are based on the same principles and differ only inmatters of detail. A cross-sectional view of the well known… … Fig. 116. Cross-Section Through Type D Schebler Carburetor. pipe screwed into the opening R, the gas passing from the car-buretor to the engine through this op.ening. D is the spray nozzle which opens into the float chamber B,the opening of the nozzle being regulated by needle valve Ewhich controls…
