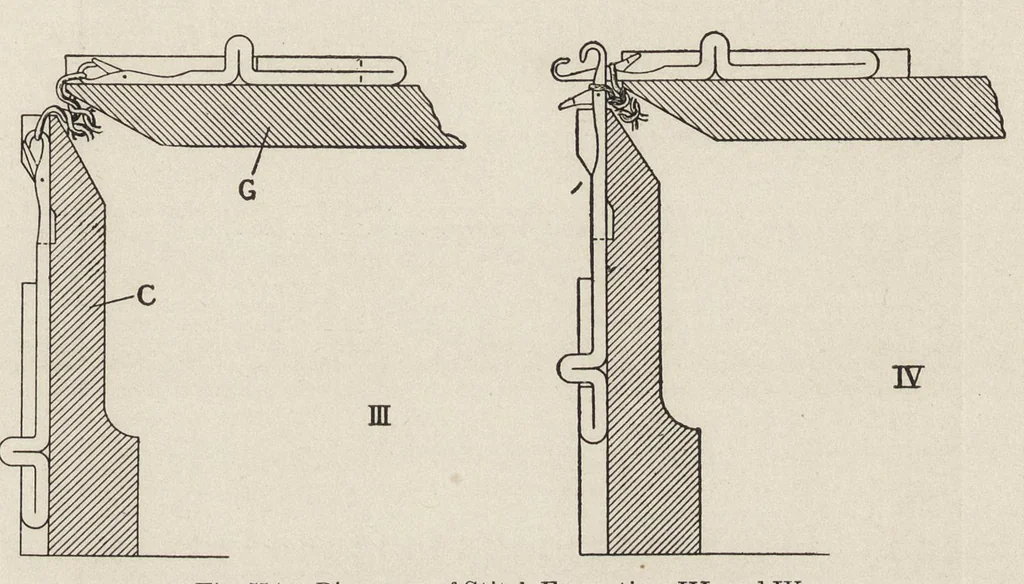

gh holes in guide discs h‘ and h’ to a hole in the top of the carrier. When this is completed for each thread, turn the machine so that the cylinder and dial drivers come opposite where the cylinder needles are resting on the fill-in cam, and insert the upper end of fabric between them. Hold it… … Fig. 55A. Diagrams of Stitch Formation, III. and Iv. over and on to the hooks of the cylinder needles. ‘Turning the ma- chine slowly and at intervals, by the hand wheel, draw the end of the fabric onto all the needles as they come into position, until the needles with the fabric hooked on come to a…
