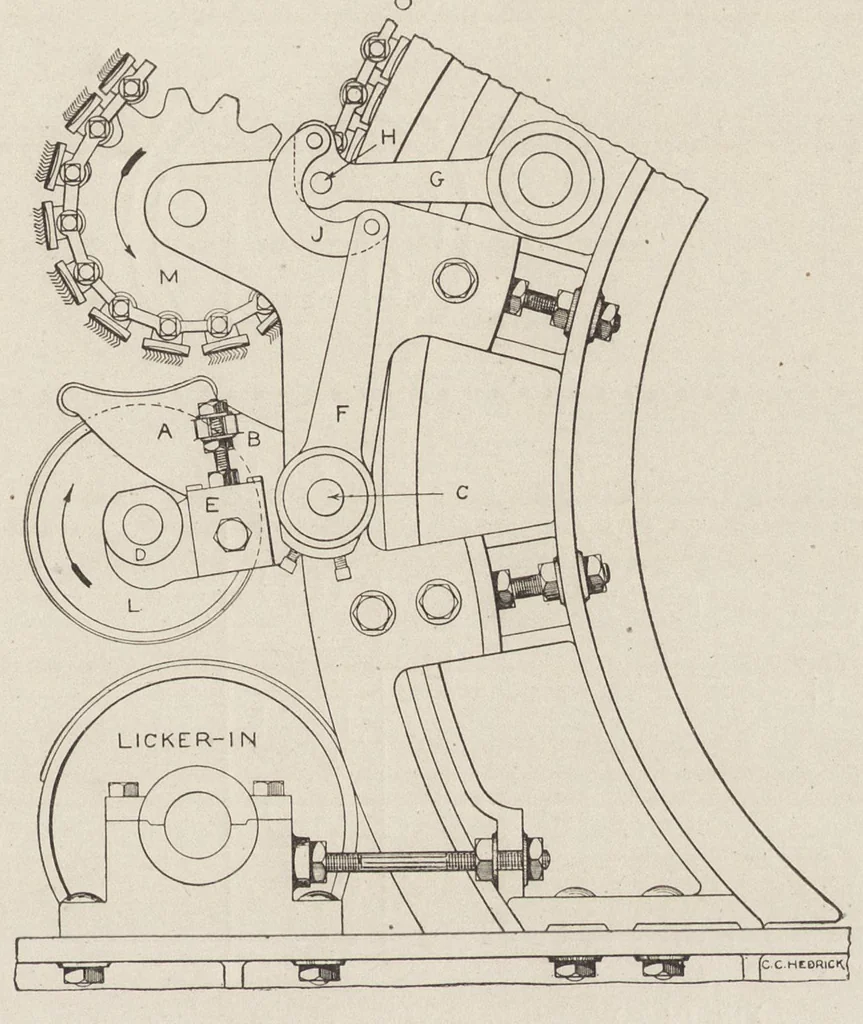

COTTON SPINNING. 107 A: device for grinding the flats with the face down is shown in Fig. 92. The grinding roll, L, is mounted in self-adjusting bearings, D, which are supported by brackets, E, and which are neuen adjustable from the grinding former, A, by means of the screw, B. The grinding former… … Fig. 98. Elevation Showing Position of Flat Grinder When Not in Use. a similar stud, H, is connected to the lever, F, by a curved arm, J. The weight lever is thrown forward and holds the former firmly in position against the bearing surface of the flats as they pass around the sprocket wheel, M.…
