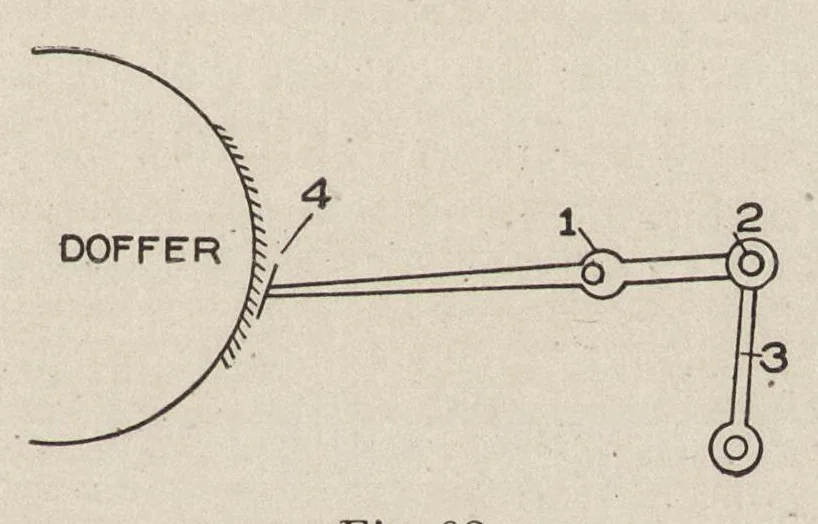

the doffer with very little help from the comb, and in some cases it may be seen to leave "the doffer some inches before the comb Fig. 61. touches it. The arrangements for driving the comb are so numerous and simple that it will be useless to describe them in detail. They may be all classed under… … Fig. 62. joint 2 to the shack 3. If the distance from the comb 4 to the center 1 be double the length of the arm 1 to 2 and if the eccentric have a stroke of ^ inch, the comb will have an up and down movement of 1^ inches; and if it be inch from th-e wire of the doffer on the down stroke (see Fig.…
