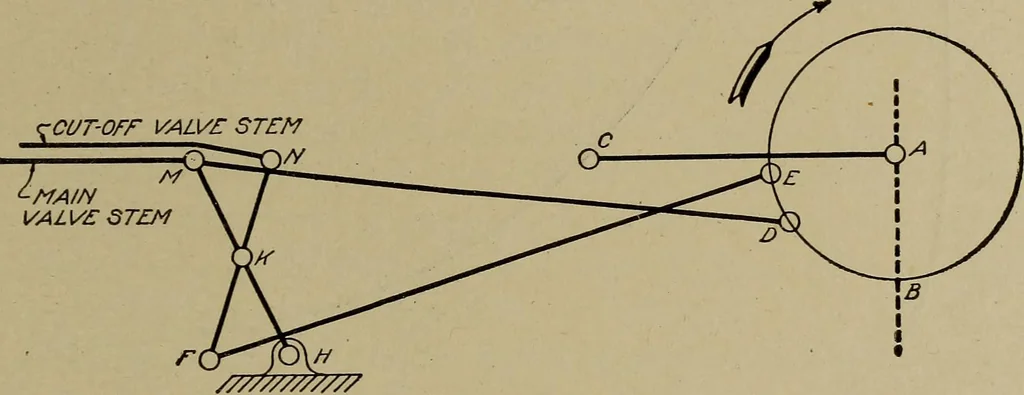

hows the valve gear as applied to the engine. Theoperation of the gear can be better understood by referring to theline drawing, Fig. 75. The crank A C is shown on the head-end deadcenter and running over. The eccentric D connects to the mainvalve stem through the eccentric rod D M, the joint M… … Fig. 75. Diagram Showing Operation of Thompson Automatic Valve Gear the point K. In the compound rocker arm, the arms M K, K H,N K, and K F are all equal. On account of the valve under dis-cussion being one having internal admission, it will be noted that theeccentric of the main valve follows the…
