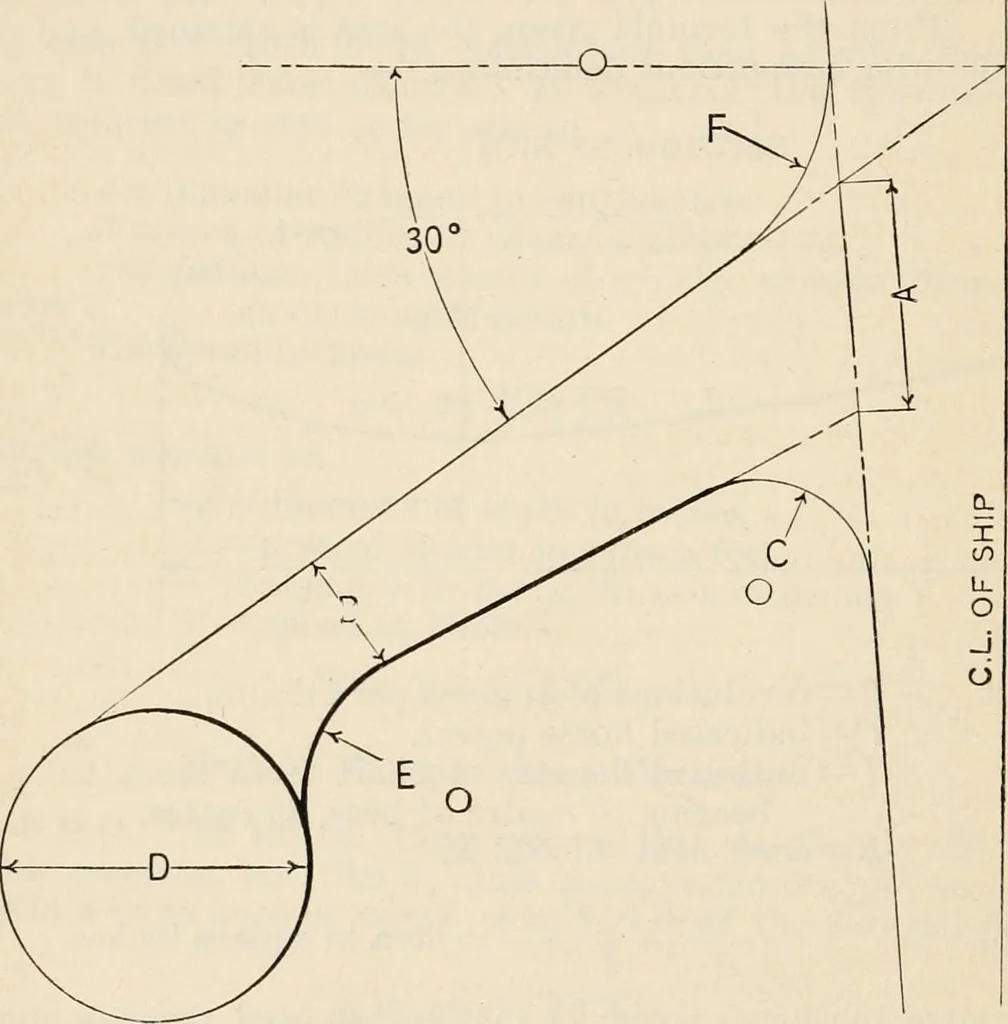

ps of cast steel. 110 The Naval Constructor Spectacle Frames. For the larger classes of twin screw steamers what are knownas spectacle frames are bolted to body post to take the outer endof shaft, and the shell plating webbed out to enclose what other-wise would be the outboard length of shafting,… … Fig. 39. brackets and the result multiplied by 2. This greater area isaccounted for by the fact that there^ is only one arm and thegreater breadth of same required to permit of working the shellplating and also obtaining the necessary section modulus. Theweight, however, will be found to…
