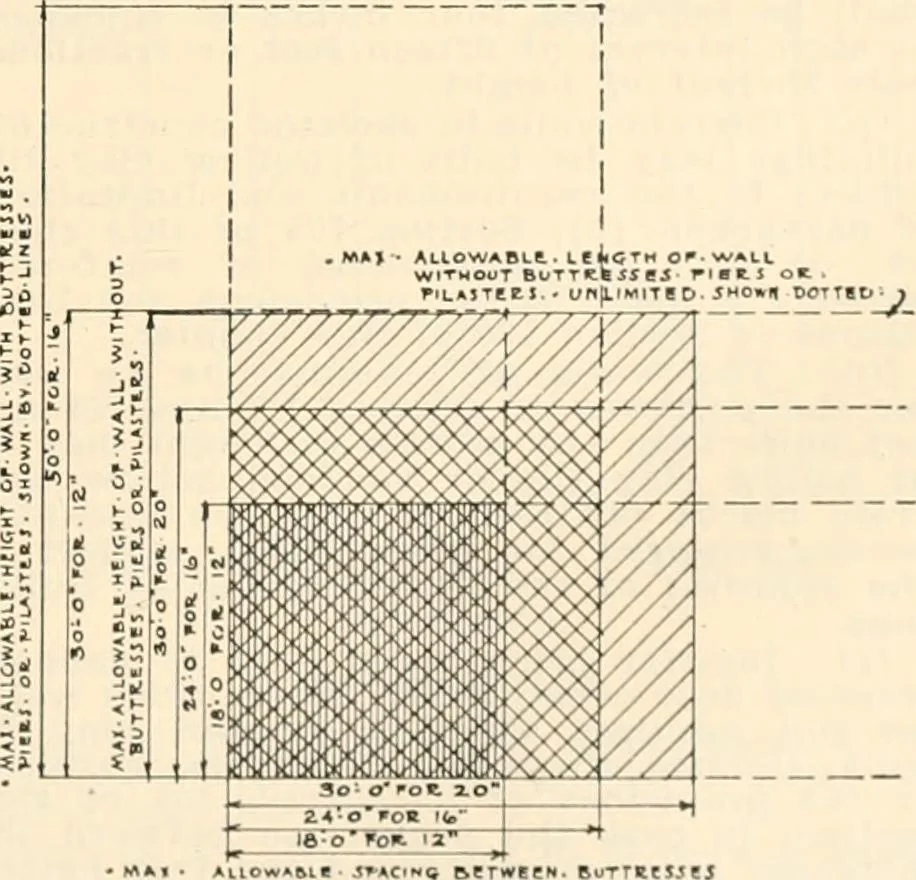

ve-inch walls between buttresses or piers orpilasters shall not be used where the dis-tance between buttresses or piers or pilasters\s greater than eighteen feet. Sixteen-inchwalls shall not be used between buttresses orpiers or pilasters where the distance be-tween buttresses or piers or pilasters… … Figr. 18. Explanatory diagram of nia.xinuimspacing and length of walls withtresses, piers or pilasters. allowor w able heightithout but- 331 WaUs area. The spikes, bolts or screws, securingsaid anchors and tie plates, shall be of suchnumber and size as to transmit the tensilestrain which tlie…
